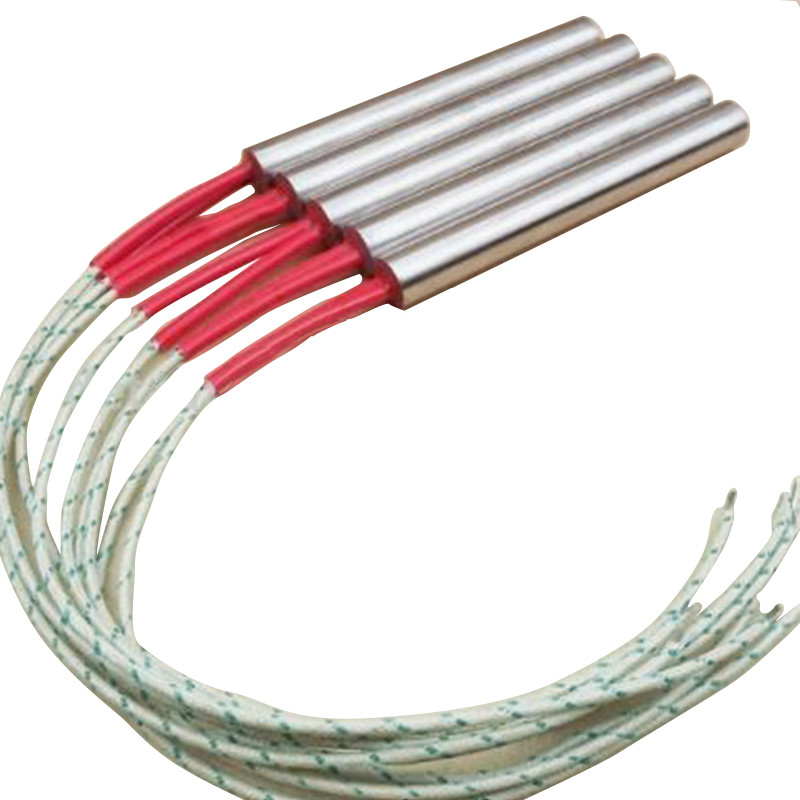

Outside Cartridge Heaters 240V OD 2.6-30mm Length 35-3000mm Connection

Outside Cartridge Heaters 240V OD 2.6-30mm Length 35-3000mm Connection

Outside Cartridge Heaters 240V OD 2.6-30mm Length 35-3000mm Connection

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T, Western Union,Paypel
Supply Ability: 3,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Cartridge Heater Application: Industrial Heating
Thermocouple: K Or J Maximum Temperature: 700°C
Diameter: 2.6-30mm Tolerance: +/- 1.5%
Heating Resistance: Cr20Ni80 Voltage: 110V 220V 230V 280V 380V Or As Demands
Wattage: 0.5-15 KW Connection Type: Connection Outside
Conductors: Copper, Copper Tinned,Pure Nickel Connection Wire: Fiberglass, Silicon, Etc.
Protection Sleeves: Metal Horse,Metal Braided Screen Water Proof: IP 65
Tube Material: Stainless Steel 304,321,316, Incoloy 800, Inconel 600
High Light:

cartridge immersion heater

,

cartridge heater with thermocouple





240V OD 2.6-30mm Length 35-3000mm Connection Outside Cartridge Heaters



Outside Cartridge Heaters 240V OD 2.6-30mm Length 35-3000mm Connection



1. Description



Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

Cartridge heater is one of the electric heating elements, which is widely used in industry mould heating. Compared with the same heating element of high thermal, cartridge heater can save 5% of electric materials, and heat efficiency can reach 90%.



Mostly, cartridge heater is used for heating solids such as injection presses heating plates or various tools, it can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries



2. Applications



1. Cartridge heater applied in mold heating has been very popular

2. Heating system in plastic machinery.

3. Pharmaceutical production

4. Heat Treatment Lab

5. Chemical industry and so on



3. Competitive Advantage



1. We manufacture high density cartridge heaters; Minimum diameter can reach 2.6mm.

2. All lead wires are pure nickel

3. Insulating material can be resistant to the high temperature of 400 degree.

4. Our product can meet IP65 waterproof

5. We produce cartridge heater with distributed wattage.



4. Delivery



Outside Cartridge Heaters 240V OD 2.6-30mm Length 35-3000mm Connection
