| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Application: | Food | Material: | Stainless Steel 304 |
|---|---|---|---|
| Accuracy: | Class1 | Usage: | Industrial |
| Type: | Thermocouple | Feature: | Handheld |
| Probe Length: | 100mm | ||
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

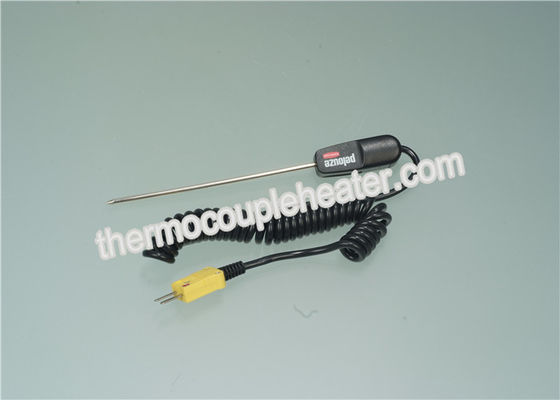

E type handheld temperature sensor surface probe thermocouple
Detailed Product Description:
Handheld needle type thermocouple
Temperature range: 0~1100
Wire material: Ni Cr- Ni Si
Probe: 6mm
probe length:more than 1m
wire length: 2000mm
Specification
| Thermocouple catagory | Graduation mark | Thermometric scope | Protection tubings |
Specification Total length |
| Pt Rh30 –Pt Rh6 | B |
0~1200°C
|
GH3039 GH747 PtRh6 |
Self-determined by customers
|
| Pt Rh 10- Pt | S/R |
0~1150°C
|
310S GH3030 INCONEL600 |
|
| Ni Cr Si – Ni Si | N |
0~1050°C
|
304 321 310S GH3030 INCONEL600 |
|
| Ni Cr Si – Ni Si | K |
0~800°C 0~1000°C |
304 321 310S GH3030 INCONEL600 |
|
| Ni Cr-Konstantan | E/J |
0~600°C
|
304 321 316L |
|
| Cu-Konstantan | T |
0~300°C
|
304 321 316L
|
Feature
1)Short thermal response time, narrow dynamic deviation.
2)Bendable to fix.
3)Wide measuring range
4)High mechanical strength, good pressure-resisting.
