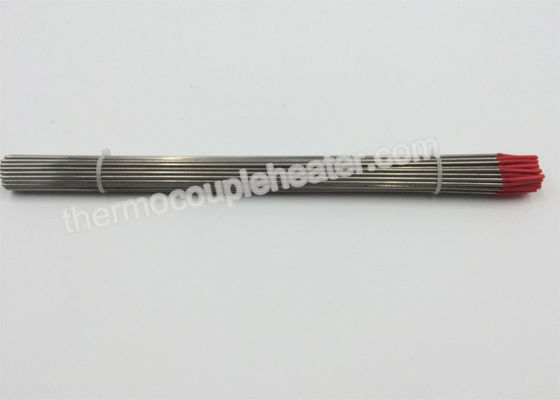

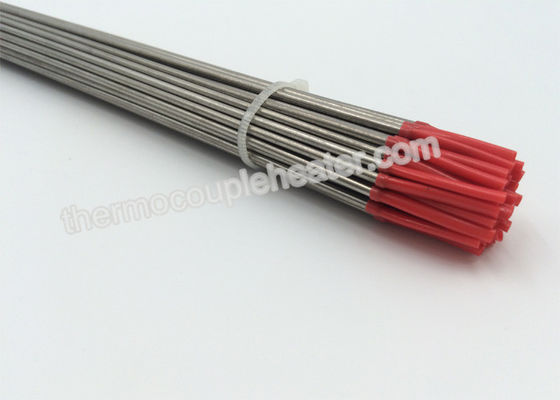

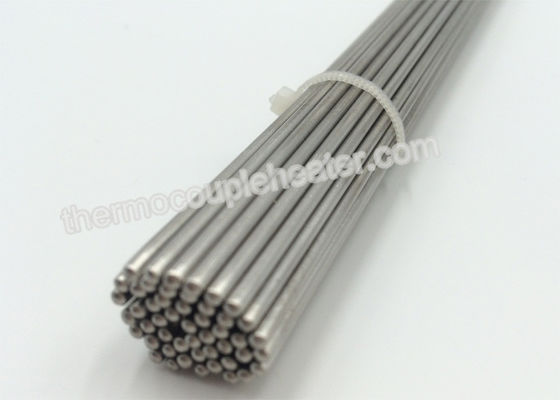

Type K Semi - finished MI thermocouple With Inconel600 Sheath

Type K Semi - finished MI thermocouple With Inconel600 Sheath

    • Type K Semi - finished MI thermocouple With Inconel600 Sheath
    • Type K Semi - finished MI thermocouple With Inconel600 Sheath
    • Type K Semi - finished MI thermocouple With Inconel600 Sheath
  • Type K Semi - finished MI thermocouple With Inconel600 Sheath

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Mineral Insulated Metal Sheath Thermocouple Probes With Bare Leads Application: Temperature Sensor For Industry
    Calibration: Type K Accuracy: Class I
    Max.temperature: -200C To +1000C Sheath Material: 304SS ,310SS,316SS,Inconel 600
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100

    Type K Semi-finished MI thermocouple With Inconel600 Sheath



    Product  Description:


    Mineral Insulated Thermocouples are manufactured from mineral oxide insulated metal sheathed cable. Mineral Insulated Cable consists of thermocouple wire insulated by compacted magnesium oxide surrounded by a metal sheath. Mineral insulated thermocouples are more durable, faster responding, longer lasting and capable for use at higher temperatures than ceramic insulator or fiberglass insulated thermocouples because the wires are encased and protected by compacted insulation and the metal sheath. Maximum operating temperatures of the thermocouples are determined by the wire calibration type and the sheath alloy selected.



    Type K Semi - finished MI thermocouple With Inconel600 Sheath



    Specification:



    Outside Diameter

    0.02”,0.04”,0.063”,0.125”,0.188”,0.25”,0.315”,0.375”

    Calibration

    J, K, T , E , N



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    310 Stainless Steel

    Inconel 600

    Junction

    Ungrounded , Grounded, Exposed



    Termination type

    3/8” Split Bare Ends.

    3” Split & Color Coded leads

    Standard Male Plug (425F)

    Standard Female Jack(425F)

    Mini Male Plug(425F)

    Mini Female Jack(425F)

    Hi Temp Male Plug(800F)

    Hi Temp Female Jack(800F)





    Feature:


    1. Customized diameter, sheath lengths and lead length
    2. Stainless steel braided or hose protection
    3. K, J, T, E and N calibrations
    4. Grounded, ungrounded and exposed junctions
    5. Flat and drill point
    6. Epoxy sealed cold ends
    7. Flexible extensions
    8. Miner coated and stainless steel sheaths
    9. Straight, 45° bend or 90° bend
    10. 12 mm and 15 mm locking bayonet caps


    Application:


    Bare Lead Mineral Insulated Thermocouple Probes can be used as replacement
    Probes for plant operation or as an OEM component to build temperature sensors.
    1. Food processing equipment
    2. De-icing
    3. Plating baths
    4. Industrial processing
    5. Medical equipment
    6. Pipe tracing control
    7. Industrial heat treating
    8. Packaging equipment
    9. Liquid temperature measurement
    10. Refrigerator temperature control
    11. Oven temperature control
