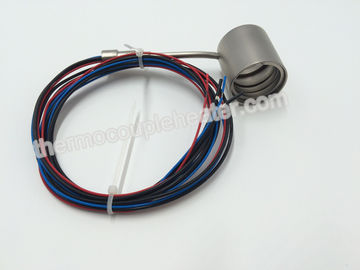

350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

Home ProductsCoil Heaters

350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

China 350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple supplier
350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple supplier 350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple supplier 350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple supplier

Large Image :  350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 7-15 working days after received your payment
Payment Terms: D/P, L/C, T/T, Paypal, , Western Union
Supply Ability: 20,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Electric Resistance Heater Application: Hot Runner
Certification: CE, Rohs, ISO9001 Moistureproof: IP65
Insulated Material: Comressed MgO Watt Density: 6.5 W /CM 2
Power(W): 200-3000W Max.Tempreture: 650℃
High Light:

Electric Coil Heaters

,

coil heater with thermocouple

,

350W 230V Hot Runner Coil Heater

350W 230V Hot runner Coil Heater with Armor And Type J Thermocouple




1. Electric Resistance Heater Brief Introduction


Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.



2. Electric Resistance Heater Characteristics



  •  Standard sizes available with various cross section
  • Various Watt Density options available.
  •  Robust Design with Choice of Terminal Exits
  •  Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple



3.  Electric Resistance Heater Application



  • Hot Runner Nozzles & Bushings.
  • Hot runner Injection moulds
  • Injection & Blow Moulding Machine Nozzles.
  • PET prefrom & Thin wall container Moulds.
  • Hot Runner Manifolds.



4.  Electric Resistance Heater Parameter.



Standard Configuration

Material :304

Unheated length(L1):45mm

Connector(cold side)(D1xU): Ф3.5x40mm

Power lines,grounding wire length(L):1000mm

Surface treatment:sandblasting;



350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple

Spring coil heater (H series)

2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance  201W-2000W

+5%-10%

Out jacket length

30mm~190mm

Diameter of the inner sleeve/wrapped diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d 20mm~30mm

Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d ≥30mm

Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm

Tolerance cross section

+/-0.10mm

Thermocouple

None

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

600V



5. Packing Information



350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple



6. Transportation



350W 230V Hot Runner Coil  Heater With Armor And  Type J Thermocouple
