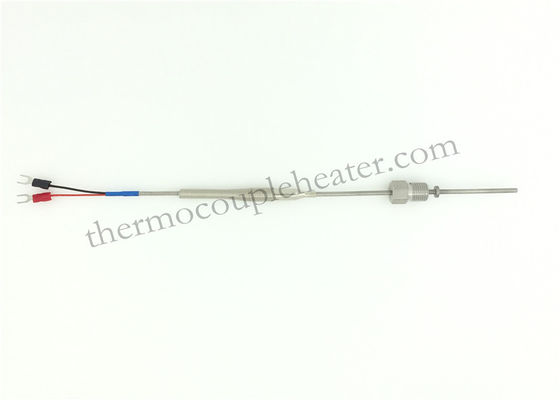

Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple

Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple

    • Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple
    • Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple
    • Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple
    • Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple
  • Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: K Type M6 Screw And Bolt Type Thermocouple Application: Temperature Sensor For Plastic And Rubber Industry
    Calibration: Type K Accuracy: Class I
    Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

    K Type M6 Screw And Bolt Type Thermocouple



    Product  Description:



    Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed. The thermocouple junction may be of many different styles, from tube type to a washer configuration. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed of determines the type of thermocouple manufactured.





    Temperature Sensor Thermocouple RTD , K Type M6 Screw Bolt On Thermocouple



    Specification:



    Nozzle Bolt Thread Size

    1/4” x 28 UNF

    M6 X 1mm

    M8 X 1mm

    M8 x 1.25mm

    Calibration

    Type K ,Type J



    Accuracy

    Class I



    Junction

    Ungrounded , Grounded



    Wire Description

    20 Gage Stranded stainless steel braid

    Flexible armor cable

    20Gage Stranded fiberglass cable

    20Gage Stranded Cable

    Termination type

    3” split leads and 1/2” Bare Ends,

    3” split leads and No.10 Spade lugs,

    Standard Male Plug,

    Standard Female Jack,

    Mini Male Plug,

    Mini Female Jack,



    Accessories

    None,

    Bx connector,

    Cable clamp





    Feature:



    Screw and bolt type thermocouple has a variety of advantages, such as: easy assembly and convenient for replacement, high mechanical strength, good pressure-resistant, good shock-proof performance. It is usually connected with display meter, recording meter and computer, etc. To directly measure temperature of liquid, vapor, gas,   and solid surface ranging from 0 °C to 1300 °C during various production processes.



    Application:



    1. Plastic injection molding machinery

    2. Food processing equipment

    3. Engine and turbine exhaust gas

    4. Semiconductor processing

    5. Heat treating and metals processing

    6. Medical equipment

    7. Aerospace industries

    8. Packaging equipment

    9. Test stands
