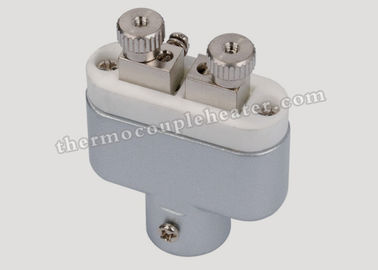

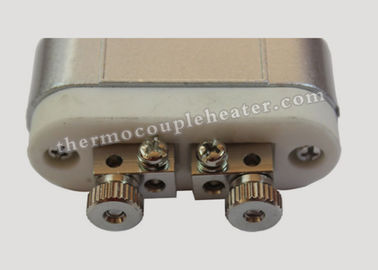

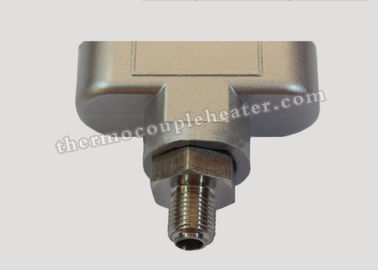

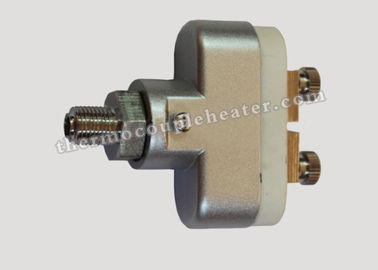

TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection

TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection

    • TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection
    • TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection
    • TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection
    • TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection
  • TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: TS Thermocouple Connection Box Application: Temperture Mesurement
    Material: Aluminum ADC12 Painting: Lacquer Painting Polyester Powder Coating
    Function: Sensor Protection Feature: Standard Wire Entry And Probe Entry
    High Light:

    temperture sensor component

    ,

    industrial heating elements

     TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection



    1. Description



    It is fabricated thermocouple measuring temperature sensor, and often display meter, recording meter and electronic regulator. Of process control system, in order to direct measurement or control in the production of a variety of 0 ℃ to 1800 ℃ in the scope of liquid, vapor and gas medium, as well as the temperature of the solid surface, simple assembly, easy to change, press reed temperature sensing element, ant-vibration performance is good, lost measuring range, high mechanical strength, good compression performance, widely used in electric power, thermal power, metallurgy, medicine, chemical industry, machinery manufacturing, etc.



    2. Specifications:



    1. TS Thermocouple head

    2. Type: TS, all type available

    3. Material: Aluminum(ADC-12), Stainless steel

    4. Standard wire entry and probe entry;

    5. Wide range of specification;

    6. High precision painting

    7. Accessory: cover sealing and cable gland sealing in silicone free material

    8. Protection level: IP65 of IEC529 Enclosure protection class

    9. Place of Origin: China (Mainland)

    10. Eco-friendly: Yes

    11. MOQ: 50PCS

    12. Certificate: ISO,

    13. Making sample time: all type in stock

    14. Trade term: FOB, EXW, CIF, CFR

    15. Payment term: T/T, Western Union, Paypal

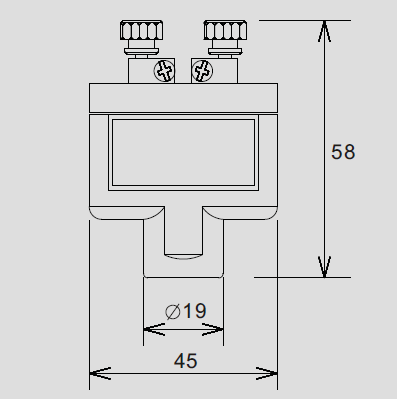

    3. Technical Drawing:

    TS Thermocouple Connection Head for Industrial Mineral Temperture Sensor Protection



    4. Description:



    Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling.

    Thermocouple heads are easy to install and are convenient for checking purposes.



    An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience.A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Weatherproof Head



    With Internal Threads Weatherproof heads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants.

    The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast cover provide for removal by means of a screwdriver or wrench..



    5. Competitive Advantage:



    1. Beautiful outlook and good performance

    2. Suitable for all kinds of thermocouple or thermal resistance

    3. Small minimum order quantity

    4. All sizes available

    5. Make head with logo according to your demand

    6. Excellent corrosion resistance

    7. Moisture and dust-resistant

    8. High precision painting
