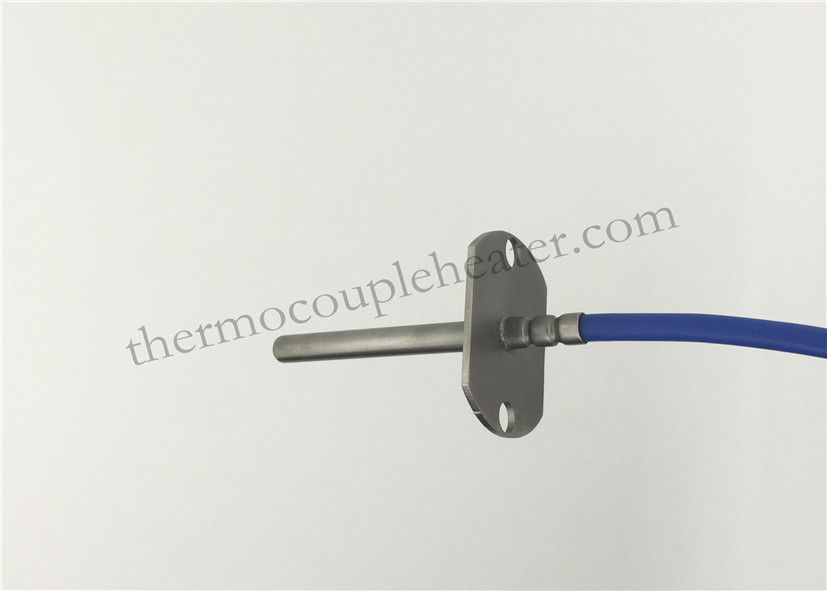

Waterproof Temperature Sensor PT100 RTD With Stainless Steel Flange

Waterproof Temperature Sensor PT100 RTD With Stainless Steel Flange

    • Waterproof Temperature Sensor PT100 RTD With Stainless Steel Flange
    • Waterproof Temperature Sensor PT100 RTD With Stainless Steel Flange
  • Waterproof Temperature Sensor PT100 RTD With Stainless Steel Flange

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Temperature Sensor PT100 RTD With Stainless Steel Flange Application: Temperature Sensor For Industry
    Max.temperature: -200 To 250°C Probe Material: 316SS
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

    Temperature Sensor PT100 RTD With Stainless Steel Flange



    Product  Description:


    Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. The RTD is composed of certain metallic elements whose change in resistance is a function of temperature. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration. The RTD element is manufactured by winding a wire (wire wound elements) or plating a film (thin film elements) on a ceramic or glass core and sealing the element within a ceramic or glass capsule.
    Since most RTDs have a low initial resistance, often 100 ohms, and have a small change in resistance per unit of temperature range, the resistance of the lead wire is often compensated for with a three or four wire bridge configuration built into the measuring devices. By selecting the proper elements and protective sheathing, RTDs can operate in a temperature range of (-200 to 650) °C [-328 to 1202] °F.



    Specifications:



    1. Name:Temperature Sensor PT100 RTD With Stainless Steel Flange
    2. Temperature :-200-500C
    3. Short response time
    4. Diameter:5/6/8mm
    5. Protection grade :IP65



    PT100 RTD Measuring Range



    Type

    Graduation

    Measuring Range°C

    Accuracy

    Tolerance

    WZP

    Pt100

    -200~+500

    Class A

    ±(0.15+0.002) |t|

    Class B

    ±(0.30+0.005) |t|

    WZC

    Cu50

    Cu100

    -50~+100

    ±(0.30+0.005) |t|




    Features:

    1. Thermal sensor with good shock-proof performance
    2. No compensational wire, spare cost
    3. High measuring accuracy
    4. High mechanical strength, good pressure-resistant performance
    5. Imported film resistor with stable & reliable performance

    Working principle:

    Compensation of the thermocouple wires electrode by the two different conductor material
    composition. As measuring end and participate in the end there is temperature difference, can
    produce thermoelectric power, the instrument will show thermoelectric potential corresponding
    temperature value.



    Application:

    It is usually connected with display meter, recording meter and computer, etc. to directly measure temperature of liquid, vapor, gas and solid surface ranging from -200 to 500 during  various production process.
