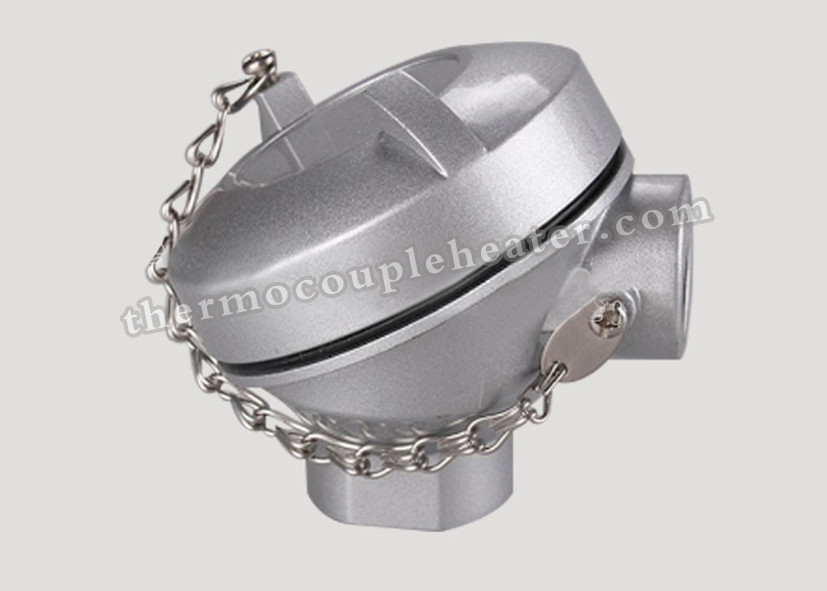

Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance

Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance

    • Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance
    • Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance
    • Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance
    • Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance
  • Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: CMI Thermocouple Connection Head Application: Thermocouple
    Probe Entry: M10*1 Wire Entry: M16*1.5
    Founction: Anti Corrosion Feature: Standard Wire Entry And Probe Entry
    High Light:

    temperture sensor component

    ,

    industrial heating elements

    Aluminum Alloy CMI Thermocouple Connection Head of Good Pressure Resistance Performance



    1. Description:



    Thermocouple heads provide the means for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling.



    Thermocouple heads are easy to install and are convenient for checking Purposes.  An outlet for conduct connection is provided with a selection of threaded outlet sizes for the protection tube.



    Available in aluminum or cast iron, these heads are superior in durability and convenience. A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Aluminum head weighs 10 ounces; cast iron head weighs 27 ounces.



    2. Specifications:



    Material:

    Wire entry

    Probe entry

    Aluminum ADC12

    M20*1.5

    M24x1.5

    Painting:

    NPT1/2"

    M33x1

    lacquer painting

    G1/2"

    NPT1/2"

    polyester powder coating



    NPT3/4"

    Colour:



    G1/2"

    Silver



    G3/4"





    1. Approved IEC529 IP65

    2. Terminal block: 2P, 3P, 4P, 6P ,8P

    3. Terminal block material: Bakelite or ceramic.

    4. CMI Thermocouple head

    5. Type: CMI, all type available

    6. Standard wire entry and probe entry;

    7. Wide range of specification;

    8. High precision painting

    9. Accessory: cover sealing and cable gland sealing in silicone free material

    10. Protection level: IP65 of IEC529 Enclosure protection class

    11. Place of Origin: China (Mainland)



    3. Technical Drawing:

    Aluminum Alloy CMI Thermocouple Connection Head High Pressure Resistance Performance



    4. Application:



    • Excellent appearance with fine finish.

    • Assembling easily.

    • Available for Spring-loaded blocks.

    • Standard size is suitable for various types of blocks, an international design.

    • Can assemble with thermocouple and RTD



    5. Competitive Advantage:



    1. Mullti explosion-proof type, good explosion-proof performance

    2. Wide measuring range

    3. High mechanical strength and good pressure-resistant performance

    4. Certain modification can be done according to your designs

    5. Beautiful outlook and good performance

    6. Suitable for all kinds of thermocouple or thermal resistance

    7. Small minimum order quantity

    8. All sizes available

    9. Make head with logo according to your demand

    10. Excellent corrosion resistance

    11. Moisture and dust-resistant

    12. High precision painting
