High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems

High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems

    • High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems
    • High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems
    • High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems
    • High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems
  • High Temperature Resistant Manifold Tubular Heater Elements For Hot Runner Systems

    Product Details:

    Place of Origin: China
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 10 working days or above
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Manifold Tubular Heating Elements For Hot Runner Systems Application: Industrial Heating Elements
    Sheath Material: Incoloy 800, SS 304, SS 321, SS 316 Voltage: 110V, 220V , Or Special To Order
    Resistance Wire: Ni80Cr20 Power: Customized

    Manifold Tubular Heating Elements For Hot Runner Systems


    Product Description

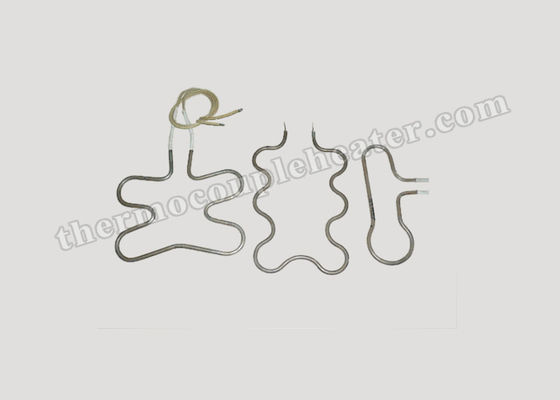

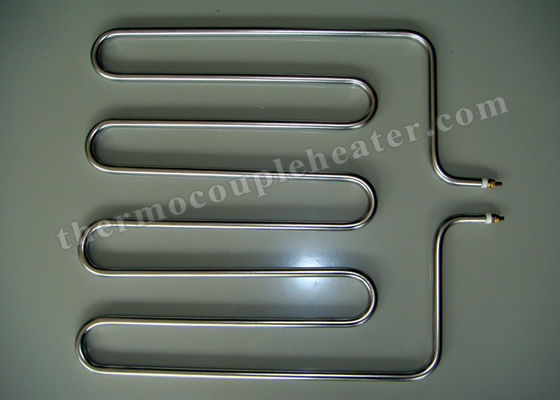

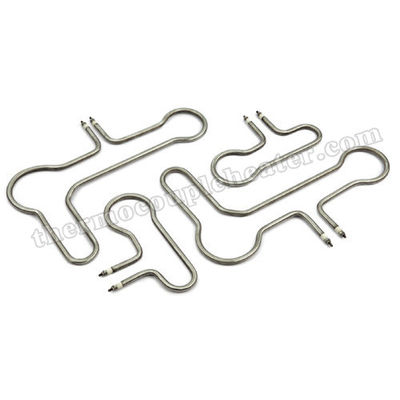

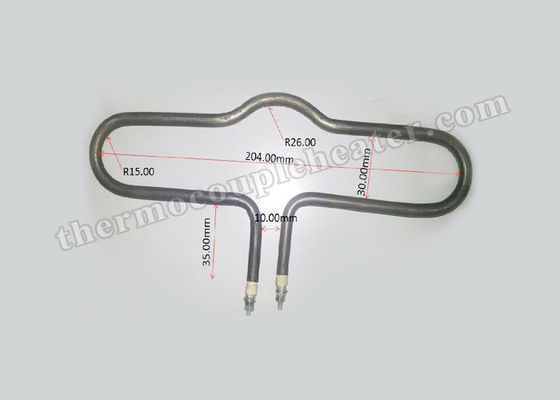

    Manifold tubular heater also called as formed tubular heaters or flexible heaters and are mainly used for hot runner manifolds.  They can provide an economical, robust, and versatile heat source. These elements are usually used to fit into milled grooves for hot runner molding systems. The precision fit optimizes heat transfer to the working surface.
    Specification

    Heating wire: high temperature resistant NiCr alloy
    Sealing components: Chrome nickel steel tubes
    Heating wire: NiCr alloy
    Available in: Dia 8.5mm, 6.5mm & square section 6x 6mm,8x8cm.
    Max. length : 2000mm (tolerances: ± 2%)
    Dia. tolerance: ± 0.10mm
    Max.surface temperature 860℃
    Max. surface load: 8 watts/cm2
    Bend radius: min.14mm
    Max. current: 15A
    Voltage: <400V
    Wattage: ±10%
    Dielectric strength: 1.5 HV
    Insulation MΩ: >5Ω
    Leakage current: <0.5mA



    Feature


    1. Shorter process time
    2. Lower power needed
    3. No contamination from dust: No convection needed
    4. High safety: No spark, no naked fire, highly insulated, the radiation of the harmony heater is not harmful to human bodies
    5. Low cost with long service life and high efficiency
    6. Easy installation
    7. Fast heat exchange rate
    8. Quick temperature raising rate
    9. Longer transfer of heat radiation



    Application


    1. Hot Runner Manifolds
