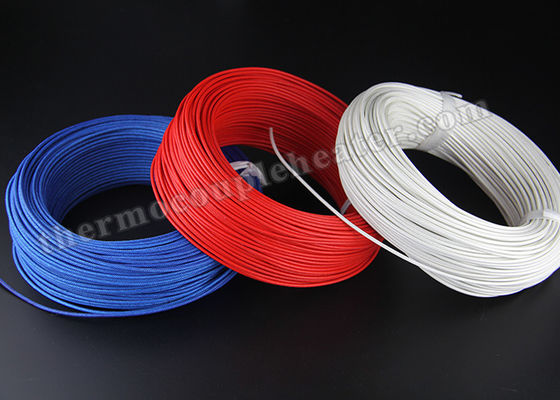

Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire

Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire

    • Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire
    • Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire
    • Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire
  • Electric Heater High Temperature Cable , Silicon Rubber Insulated Heating Wire

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: High Temperature Cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 m
    Price: Negotiation

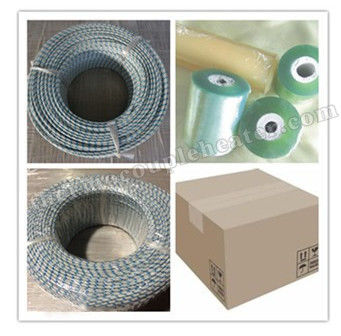

    Packaging Details: Exported Case Packing
    Delivery Time: 15-20 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypla
    Supply Ability: 100,000m per month
    Contact Now
    Detailed Product Description
    Product Name: Silicon Rubber Insulated Heating Wire Application: Electric Heater
    Conductor Type: Stranded Insulated Materials: Silicon & Mica
    Package: In Roll Or Spool Conductors: Nickel Copper, Nickel
    Color: Red/Black/Blue/Yellow Size: 26AWG~4/0 AWG

    Silicon Rubber Insulated Heating Wire with High Temperature



    1. High Temperature Cable Brief Introduction



    Wiring of heating elements, cartridge, bands and hot plates. Domestic electrical heating application, professional kitchens and ovens. Machine for thermoplastics and rubber, etc... Furnaces and industrial ovens.



    2. High Temperature Cable Characteristics



    •  High temperature resistance,low temperature resistance
    • Anti-acid and alkali,fire and aging resistance,
    • The inoxidizability, resistance of humidity,
    • The fine electric insulation and flexible performance



    3. High Temperature Cable Parameter.



    Norminal

    Section

    mm2

    Construction

    No./ mm

    Average Insulation

    Thickness mm

    Cable Max.

    Outer Dia.

    mm

    Conduct Resistance

     20℃Ω/km

    Cable &Wire

    Test Voltage

    kv

    Average

     Weight

    0.3

    17/0.15

    0.6+

    1.8+-0.05

    53

    3

    6.0

    0.35

    20/0.15

    0.6

    1.9+-0.05

    48

    3

    8.0

    0.5

    20/0.18

    0.6

    2.2+-0.05

    40

    3

    9.0

    0.75

    24/0.20

    0.6

    2.4+-0.10

    26

    3

    12

    1.0

    30/0.20

    0.6

    2.5+-0.10

    19.3

    3

    14.5

    1.5

    30/0.25

    0.7

    2.9+-0.10

    13.2

    5

    20

    2.0

    40/0.25

    0.7

    3.1+-0.10

    9.9

    5

    24.5

    2.5

    49/0.25

    0.8

    3.7+-0.10

    7.98

    6

    29.5

    4.0

    56/0.3

    0.8

    4.2+-0.10

    4.95

    6

    46

    6.0

    84/0.3

    0.8

    5.0+-0.10

    3.3

    6

    65

    10.0

    84/0.4

    1.0

    6.8+-0.10

    1.91

    6

    122

    16.0

    126/0.4

    1.0

    8.0+-0.10

    1.21

    6

    174

    25.0

    196/0.4

    1.2

    10.0+-0.20

    0.85

    6

    260

    35.0

    280/0.4

    1.4

    11.8+-0.20

    0.68

    6

    380

    50.0

    399/0.4

    1.6

    13.6+-0.20

    0.59

    6

    550

    Conductor

    Insulation

    Diameter
    FEP/S.R
    (Ω/KM)

    Unit length
    (M)(Ft)

    Size
    (AWG)

    Construction
    (No./mm)

    Diameter
    (mm)

    Mica
    Thickness
    (mm)

    Glass
    Thickness
    (mm)

    26

    7/0.16

    0.48

    ≥0.635

    0.181

    ≥2.15

    305

    24

    7/0.20

    0.61

    ≥0.635

    0.181

    ≥2.25

    305

    22

    7/0.25

    0.77

    ≥0.635

    0.181

    ≥2.40

    305

    20

    7/0.31

    0.94

    ≥0.635

    0.181

    ≥2.60

    305

    18

    16/0.254

    1.19

    ≥0.635

    0.181

    ≥2.85

    305

    16

    26/0.254

    1.49

    ≥0.635

    0.181

    ≥3.15

    305

    14

    41/0.254

    1.87

    ≥0.635

    0.181

    ≥3.50

    200

    12

    65/0.254

    2.36

    ≥0.762

    0.381

    ≥4.65

    100

    10

    35/0.45

    3.06

    ≥0.762

    0.381

    ≥5.35

    100

    8

    67/0.40

    3.75

    ≥0.762

    0.381

    ≥6.05

    100

    6

    266/0.254

    4.75

    ≥0.762

    0.381

    ≥7.05

    100

    4

    420/0.254

    6.02

    ≥0.762

    0.381

    ≥8.25

    100




    4. Application



    Apply to household appliance,Illumination & lighting & headlamp,electric machines,temperature sensor,Military series,metallurgy chemical series,motor cars & ships,electrical installation.
