Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | High Temperature Cable |
| Minimum Order Quantity: | 1000 m |
|---|---|
| Price: | Negotiation |

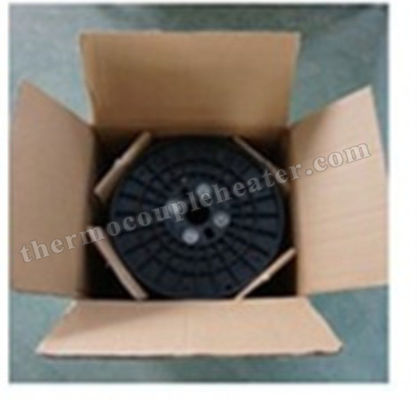

| Packaging Details: | Exported Case Packing |
| Delivery Time: | 15-20 working days after received your payment |
| Payment Terms: | T/T, Western Union, D/P, L/C, Paypla |
| Supply Ability: | 100,000m per month |
| Product Name: | High Temperature Cable | Application: | Electric Heater |
|---|---|---|---|
| Conductor Type: | Stranded | Insulated Materials: | Silicon & Mica |
| Package: | In Roll Or Spool | Color Code: | Ansi, Iec, Din, Etc |
| Color: | Red/Black/Blue/Yellow | ||
| High Light: | high temperature electrical wire,high temperature insulated wire |
||

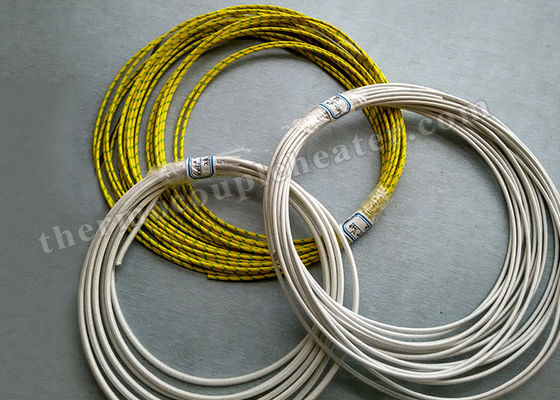

500°C Mica High Temperature Cable for Electric Heaters
1. High Temperature Cable Brief Introduction
This cable is widely used in the wiring of heating elements, such as cartrige heater, band heater, and
hot plates, etc. The insulation materials can be silicon and mica.
2. High Temperature Cable Characteristics
3. High Temperature Cable Parameter.
|
1 |
Flexible nickel core, type 20 |
|
2 |
Fiberglass braid with high temperature finish |
|
3 |
Mica tape |
|
4 |
Fiberglass braid silicone impregnate with high temperature finish
|
|
Rated voltage |
300/500V |
|
Testing Wattage |
2000W |
|
Rated temperature |
-60℃ +500℃, peaks to 550℃ |
|
Size AWG |
Conductor Structure |
Insulation Thickness (mm) |
Braid Thickness (mm) |
Diameter (mm) |
|
26 |
7/0.16 |
≥0.64 |
≥0.18 |
2.0±0.2 |
|
24 |
7/0.2 |
2.3±0.2 |
||
|
22 |
7/0.254 |
2.4±0.2 |
||
|
20 |
10/0.254 |
2.6±0.2 |
||
|
18 |
16/0.254 |
2.8±0.2 |
||
|
16 |
26/0.254 |
3.2±0.2 |
||
|
14 |
41/0.254 |
3.6±0.2 |
||
|
12 |
65/0.254 |
4.2±0.2 |
||
|
10 |
103/0.254 |
≥0.76 |
≥0.38 |
5.2±0.2 |
|
8 |
163/0.254 |
6.6±0.2 |
||
|
6 |
266/0.254 |
7.1±0.2 |
||
|
4 |
420/0.254 |
8.3±0.2 |
3.Application
Wiring of heating elements, cartridge, bands and hot plates. Domestic electrical heating application, professional kitchens and ovens. Machine for thermoplastics and rubber, etc... Furnaces and industrial ovens.
Apply to household appliance,Illumination & lighting & headlamp,electric machines,temperature sensor,Military series,metallurgy chemical series,motor cars & ships,electrical installation.
