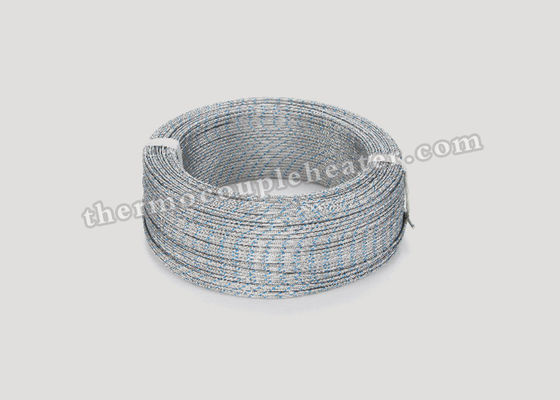

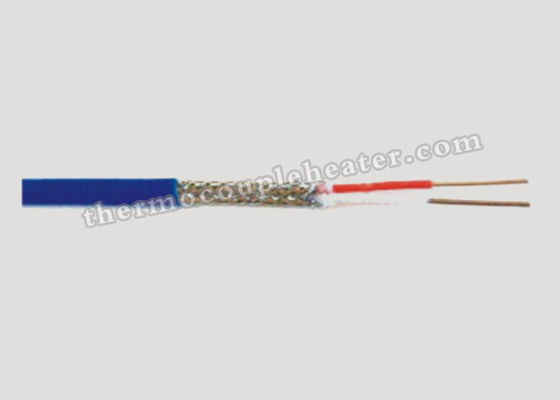

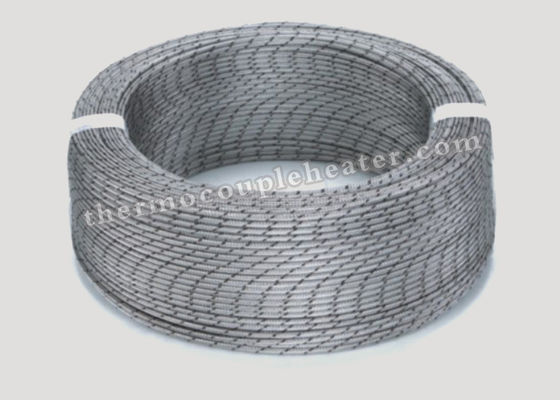

Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket

Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket

    • Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket
    • Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket
    • Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket
  • Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO
    Model Number: TF+SS+TF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000Meter
    Price: USD 0.5-3.0 FOB Shanghai /Meter
    Packaging Details: Export Carton Package
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, L/C, Western Union, PayPal
    Supply Ability: 100000Meter/Month
    Contact Now
    Detailed Product Description
    Product Name: Compensation Cable Max Temperature: 200℃
    Wire Size: As Customer’s Request Structure: TF+SS+TF
    High Light:

    type k thermocouple extension wire

    ,

    extension grade thermocouple wire

    RTD Thermocouple Compensating Cable with Silicon Rubber Insulated Conductor and Silicon Rubber Jacket (SI+SI )

    Specifications:

    1 Calibration: K, J, T, E, N, S, R
    2 Conductor insulation material: Silicon rubber
    3 Inner shield material: SSB
    4 Jacket insulation material: silicon rubber
    5 Outer shield material: SSB



    Type



    Contractors

    Color Code

    K

    Wire size

    Section (mm’)

    AWG





    J

    2X1/0.2



    32

    FB+FB

    ANSI

    E

    2X1/0.5



    24

    FB+FB

    DIN

    T

    2X1/0.65



    22

    FB+FB

    IEC

    N

    2X1/0.8



    20

    FB+FB

    JIS

    S

    2X7/0.2



    24

    FB+FB

    BS



    2X7/0.3



    20

    FB+FB

    NFC







    20

    FB+FB




    Description:

    Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction.

    Thermocouple and RTD extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy. Omega offers straight wire as well as retractable TPE (thermoplastic elastomeric) cable style wire.

    Practical for use in connecting between a thermocouple sensor and a readout, extension wire comes in as large a variety as our thermocouple wire.
    Thermocouple Extension and Compensating Cables
    It is often necessary to locate the cold junction of the thermocouple in a larger distance from the measuring point due to safety concerns or constructional reasons. For the connection between the two points, thermocouple extension and compensating cables are used.

    The application range for these cables is limited in most standards to a temperature of -25 °C (-13 °F) to +200 °C (+400 °F), or depends on the temperature resistance of the insulation material used. The insulation material is to be selected in order to fulfill the requirements at site concerning chemical and heat resistance, moisture protection and other technical requirements.

    Applications:

    Thermocouple Cable is the wire which has the similar thermoelectric properties with thermocouple in a certain temperature range.
    The thermocouple total potential value only relate to the temperature of hot end and reference junction without influence of intermediate temperature. So compensation could extend the heat to the meter terminal instead of expensive compensation wire.

    Thermocouple Extension Wire Type K With with Silicon Rubber Insulated Conductor / Jacket

    Competitive Advantage

    1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
    2. 10,000 meters without joints
    3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
