Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE/UL/CSA/ISO |
| Model Number: | TF+TF |
| Minimum Order Quantity: | 1000Meter |
|---|---|
| Price: | USD 0.5-3.0 FOB Shanghai /Meter |
| Packaging Details: | Export Carton Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 100000Meter/Month |
| Product Name: | Extension Cable | Max Temperature: | 400℃ |
|---|---|---|---|
| Wire Size: | As Customer’s Request | Structure: | TF+TF |
| High Light: | extension grade thermocouple wire,compensating cable for k type thermocoupl,Insulated Conductor Compensating Cable |
||

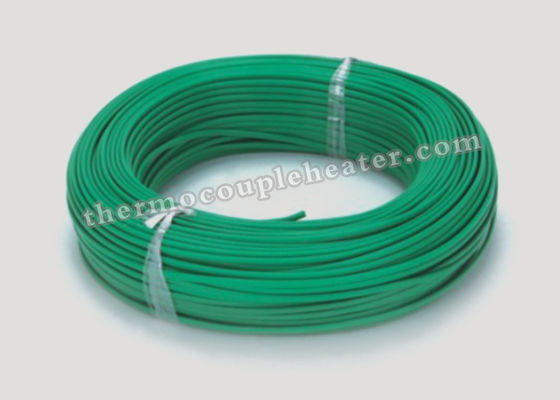

Thermocouple Compensating Cable with Insulated Conductor and Jacket (TF+TF)
Specifications:
1. Calibration: K, J, T, E, N, S, R
2. Conductor insulation material:
3. Inner shield material: SSB
4. Jacket insulation material:
5. Outer shield material: SSB
6. Max temperature :200℃
7. Constructure : TF+TF
|
Type |
|
Contractors |
Color Code |
||
|
K |
Wire size |
Section (mm’) |
AWG |
|
|
|
J |
2X1/0.2 |
|
32 |
FB+FB |
ANSI |
|
E |
2X1/0.5 |
|
24 |
FB+FB |
DIN |
|
T |
2X1/0.65 |
|
22 |
FB+FB |
IEC |
|
N |
2X1/0.8 |
|
20 |
FB+FB |
JIS |
|
S |
2X7/0.2 |
|
24 |
FB+FB |
BS |
|
|
2X7/0.3 |
|
20 |
FB+FB |
NFC |
|
|
|
|
20 |
FB+FB |
|
Description:
Thermocouple and RTD extension cables are available in a variety of connector and jacket configurations to make connections between process and instrumentation easy.
Practical for use in connecting between a thermocouple sensor and readout, extension wire comes in as large a variety as our thermocouple wire.
is the best insulation material among organic materials in respect of heat resistance, chemical Resistance, electrical insulation, high frequency resistance, weather resistance, etc. high mechanical strength and, especially, high pressure resistance over wider range of operating temperatures. Recommended Temperature Range: -25˜+200˚C. * is the registered trade mark by DuPont, U.S.A.
Applications:
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouples’ reference junction. Commonly there are four types of insulation material for extension cable: fiberglass, , PVC and silicone. Stainless steel braided and tinned brass braided are also commonly used in the cable.
Customers from different areas possibly require different color style for the cable, all color standard are available upon request.
Competitive Advantage:
1. Our measurement accuracy of thermocouple cable can reach the level of grade 1
2. 10,000 meters without joints
3. The color-coded can meet the requirements of (ASNI, DIN, JAP, IEC ... etc)
