| Product Name: | Base Metal Thermocouple Assembly With Metal Protection Tube | Application: | Temperature Sensor For Industry |
|---|---|---|---|
| Common Size: | Ø 6.0mm To 26.7mm (3/4" Nominal Bore) | Common Element Diameters: | Ø 1mm To 3.2mm |
| Temperature Range: | -200 To 1400 ° C Depending On Thermocouple Sensor Type | Common Sensor Types:: | K, J, N, T, E |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100,Thermocouple Assembly With Metal Protection Tube |
||

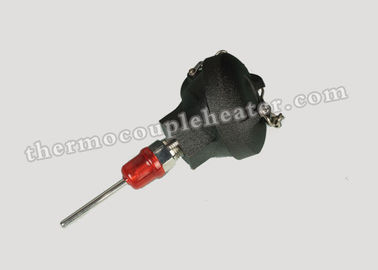

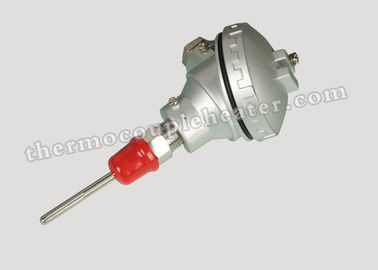

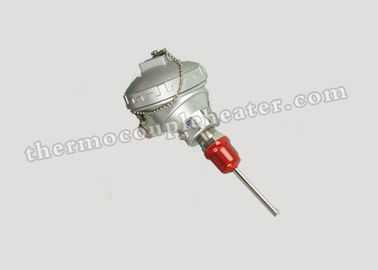

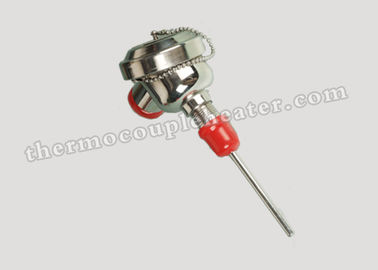

Base Metal Thermocouple Assembly With Metal Protection Tube
Product Description:
Base metal thermocouples are known as Types E, J, K, T and N and comprise the most commonly used category of Thermocouple. The conductor materials in base metal thermocouples are made of common and inexpensive metals such as Nickel, Copper and Iron.
Specification:
|
Outside Diameter |
1/4” NPT Pipe 1/2” NPT Pipe 3/4” NPT Pipe |
|
Wall Thickness
|
Schedule 20 Schedule 40 Schedule 80 |
|
Sheath material |
Carbon steel 304 SS 316 SS Inconel 600 Ceramic Coated |
|
Carlibration |
Standard Limits of Error J, K,T,E,N Special Limits of Error J,K,T,E,N |
|
Junction |
Grounded ( Single, Dual) Ungrounded (Single, Dual) |
|
Process Connection |
None, 1/2”NPT, 3/4”NPT, 1”NPT, |
|
Connection Head Model |
None,3” Split Leads Cast Aluminum: Standard Cast Aluminum: Mini Black Nylon Head Cast Iron:Standard Size 316 Stainless Steel Explosion Proof |
|
Conduit Opening |
None 1/2” NPT 3/4” NPT |
|
Connection Head Options |
None 4-20mA Transmitter No Terminal Block |
|
Type |
Name of Material |
Application Range |
|
K |
NiCr-Ni |
-200 to 1200°C |
|
J |
Fe-CuNi |
-40 to 750°C |
|
T |
Cu-CuNi |
-200 to 350°C |
|
E |
NiCr-CuNi |
-200 to 900°C |
|
N |
NiCrSi-NiSi |
-200 to 1200°C |
Feature:
1. The sensor can be mounted into a thermowell or directly into a process with the use of a fixed,spring loaded or compression process fitting.
2. The thermocouple sensors available for this assembly are provided with a variety of sheath materials including stainless steels, corrosion resistant and high temperature oxidation resistant alloys.
3. Thermocouple diameters range from 2 mm to 8 mm. Standard diameters are 3 mm & 6 mm.
4. The thermocouple sensor can be springloaded ensuring a positive contact to the base of a thermowell bore.
5. Thermocouple temperature ranges are dependent on the sheath & conductor diameter, element calibration, and sheath material.
6. A variety of neck extensions are possible. They provide a fixture from the enclosure (connection
head) to the process or thermowell. The standard neck extensions are the nipple-union-nipple or
the male threaded neck tube. These extensions allow for directional rotation of the head for field
wiring as well as a positive quick disconnection of the assembly from the process or thermowell.
Application:
The Base Metal Thermocouple Assembly With Metal Protection Tube are designed for use in corrosive or hostile environments. The choice of a specific style is determined by the temperature working range, ambient atmospheric or media conditions and the size and shape required for the application. Control requirements, such as accuracy and speed of response, may also be considerations to take into mind. It is mainly used for below area,
1. Metal processing such as aluminum, zinc, brass (with appropriate protection tube)
2. Chemical Industry
3. Petrochemical Industry
4. Industrial storage tanks
