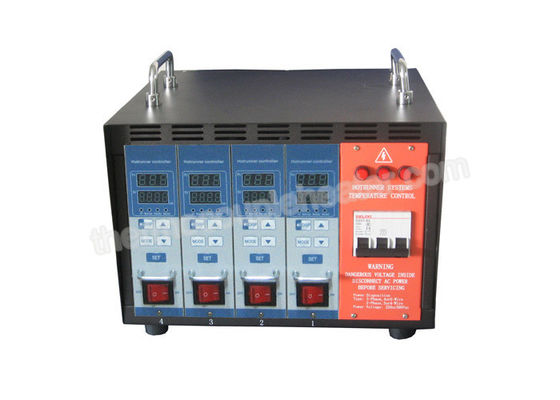

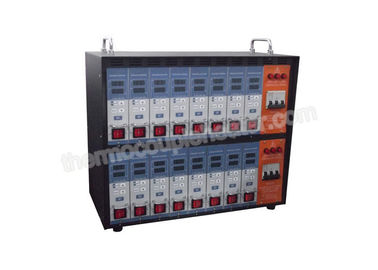

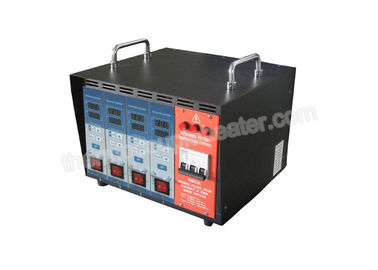

High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System

High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System

    • High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System
    • High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System
    • High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System
    • High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System
  • High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE/UL/CSA/ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: I PC
    Price: Negotiation
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Multi-zone Temperature Controller Application: Heating System
    Temperature Range: 50°C-537°C Temperature Stability: ±0.5%
    Thermocouple Type: K/J Optional Control Accuracy: ±0.5 °C

    High Accuracy Multi-zone Temperature Controller for Heating System



    1. Description:



    This controller is ideal for regular molding machines without sequential fill capability. It allows operators to program the controller according their specific molding needs. Each control zone can be programmed for time-based and/or volume-based injection. The nozzles for each control zone can be graphically shown on the touch screen display.



    The time from injection start to packing end (injection plus packing time) is entered into the Close Timer to switch all valves. Individual close times are also available.



    2. Specifications:





    Input specifications



    Thermocouple (T/C) Sensor

    J/K

    External T/C Resistance

    10K

    T/C Isolation

    yes

    Cold Junction Compensation

    yes

    T/C Break Protection

    yes

    Reverse T/C Protection

    yes

    Shorted T/C Protection

    yes

    Input Type

    Common-Mode

    Input Impedance

    160 GΩ

    Input Protection

    YES

    Input Amplifier Stability

    0.3μV/Mo

    Input Dynamic Range

    1uV-80mV

    Common Mode Rejection Ratio

    123DB

    Power Supply Rejection Ratio

    5uV/V

    Communication Inputs

    RS485 Bus



    Output Specifications

    MAX 30A

    Voltage Power Capability

    MAX

    Output Drive

    SCR

    Overload Protection

    FUSE BREAK

    Transient Protection

    FUSE BREAK

    Power Line Isolation

    100MΩ

    Power

    Three Phase + Zero line +Gnd lin

    Performance Specifications

    Auto & Manual control Mode

    Yes

    Temperature Range

    50°C-537°C

    Control Accuracy

    1±0.3% of span

    Temperature Stability

    ±0.5%

    Compensated Manual Control

    yes

    Advance diagnostics Indicators

    yes

    Calibration Accuracy

    0.1% of span

    Cycle Time

    200ms

    Temperature Reset

    Yes

    Ramp Start TM(RS)

    yes

    RS Duration

    10mins

    RS Override temperature

    1% of span

    Operational Mode Priority

    OFF MODE

    Electrical Power Specifications

    Input Voltage

    AC185V-245V

    Frequency

    50/60HZ

    DC Power Supplies

    NO

    Module Power Usage

    NO

    Dimensions



    UNIT PRICE (EXW SHENZHEN)








    High Accuracy Multi - Zone Hot Runner Temperature Controller for Heating System



    3. Applications:

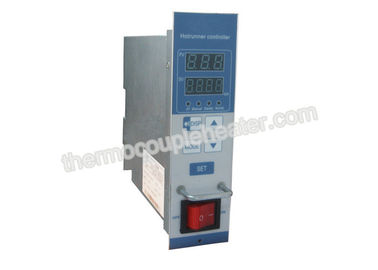

    All standard size design, fitted into 1-12zone and upon cabinet 6.

    Low temperature inside the cabinet, even in bad working condition



    4. Competitive Advantage:



    1. Shorted heater protection apposition wiring between heater and thermocouple Electronic protection            against neutral malfunction.

    2. Auto-tuning +phase angle fired output, delivers smooth and exact power

    3. SoftArt function for smooth start-ups

    4. Mold doctor(troubleshoot your mold )
