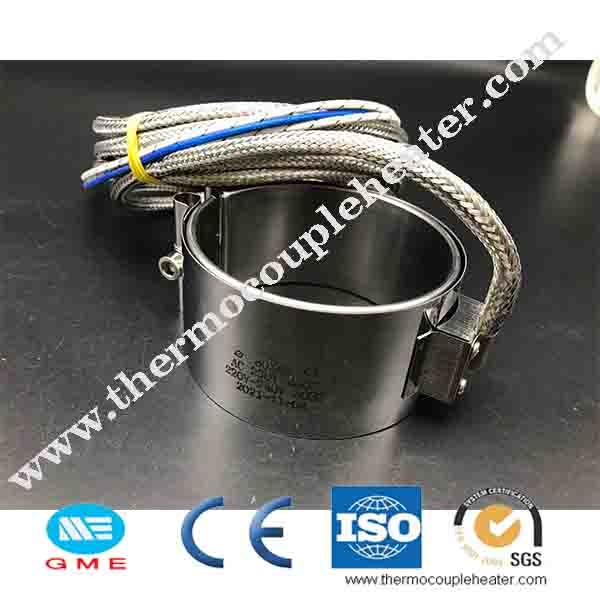

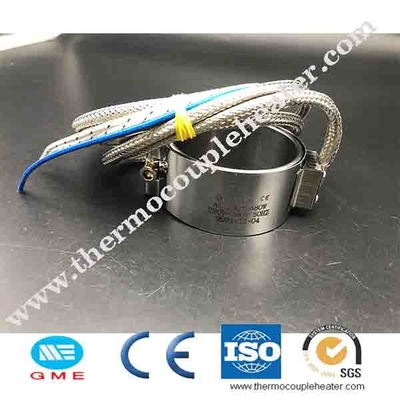

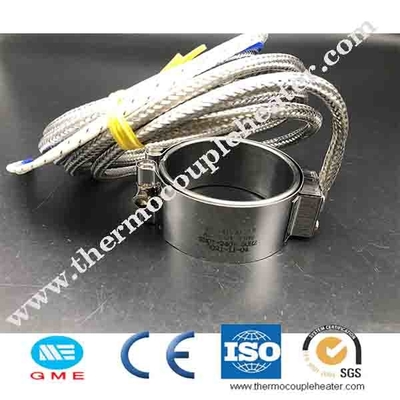

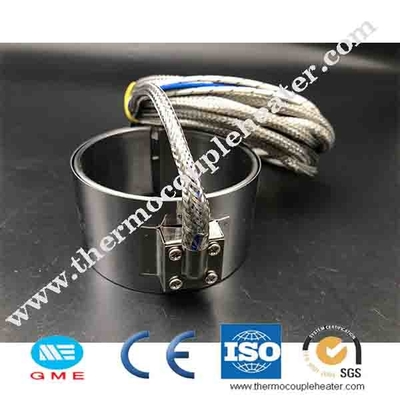

Electric Stainless Steel Sheath Mica Band Heater For Extruder

Electric Stainless Steel Sheath Mica Band Heater For Extruder

    • Electric Stainless Steel Sheath Mica Band Heater For Extruder
    • Electric Stainless Steel Sheath Mica Band Heater For Extruder
    • Electric Stainless Steel Sheath Mica Band Heater For Extruder
    • Electric Stainless Steel Sheath Mica Band Heater For Extruder
  • Electric Stainless Steel Sheath Mica Band Heater For Extruder

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 220v, 110v 10v 220v Sheath Material: Stainless Steel Or Nickel
    Minimum ID: 25mm Name: Ceramic Band Heater For Injection Molding Machine
    Lead Wire: Copper, , Fiberglass Silicon Shape: Cylinder
    Power: 0-90000KW Heating Elements: Nickel Chrome Wire
    High Light:

    Stainless Steel Sheath Mica Band Heater

    ,

    Mica Band Heater For Extruder

    ,

    Mica Insulated Band Heaters For Extruder

    Electric Stainless Steel Heating Element Mica Band Heater for Extruder





    Description:



    Mica has a unique characteristic in that one can obtain very thin flakes with a consistent thickness. It conducts low amounts of heat, especially perpendicular to its strata. In addition, it is non-flammable, flame-retardant and does not emit fumes



    Specification:



    Ceramic band heater, mainly used for extrusion,casting and down-stroke machines. The operating temperature can reach up to 600 degree C. The maximum surface loading rate is 8 w/ cm2. Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving(energy consumption is reduced by 30%), high resistance of high insulation rate. It is one of the most suitable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.



    1. Use condition:environment temperature -20~+60 degree C

    2. Leakage current:<0.5MA

    3. Insulation resistance:>=5M

    4. Ground resistance:<0.1

    5. Voltage resistance:no electric breakdown for 1 minute under 1500v

    6. Temperature endurance:500-800 degree C

    7. Power deviation:+5%-10%



    Mica Band Heater Materials
    Sheath
    Stainless steel
    Resistance Wire
    Ni80Cr20/Cr25Al5
    Insulation
    Mica (for higher working temperature, ceramic is available)
    Lead wire
    1. Standard - Silicone fiberglass lead (Max. environment temp. 200℃)
    2. High temp fiberglass (Max. Temp.450℃)
    Lead protection
    1. Standard - Fiberglass sleeve
    2. Stainless steel braid
    3. Stainless steel hose

    Electric Stainless Steel Sheath Mica Band Heater For Extruder



    Application:



    Injection molding
    Blow-molding
    Plastic extrusion
    food industry
    Container, pipe, or tank heating,etc.
