Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0 X 3.0, 3.30 X 3.30, 3.5 X 3.5, 4 X 4,4.20 X 2.20,4.20 X 2.50 | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Color: | Silver Or Fully Black | ||
| High Light: | 230V Coil Nozzle Heater,Hot Runner Spring Coil Nozzle Heater,Spring Coil Heater With Thermocouple |
||

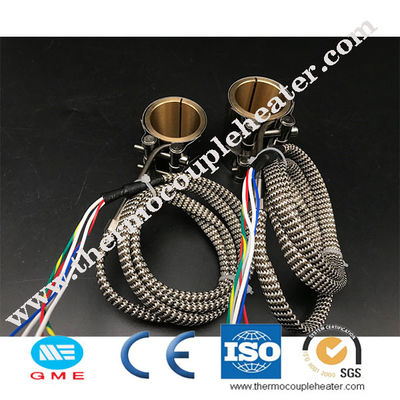

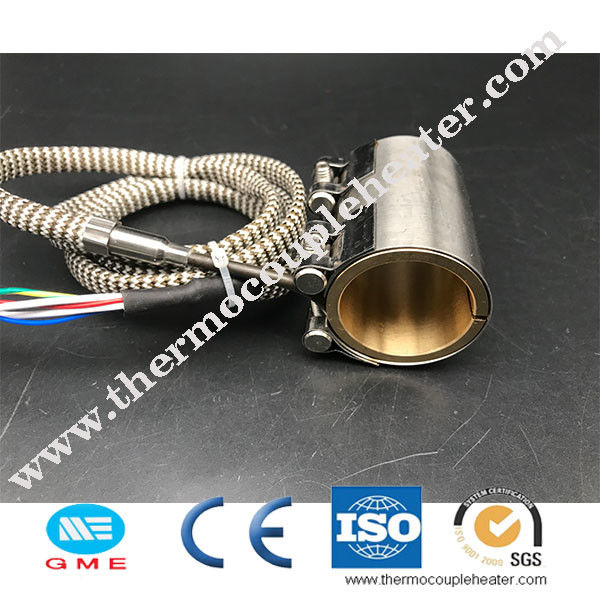

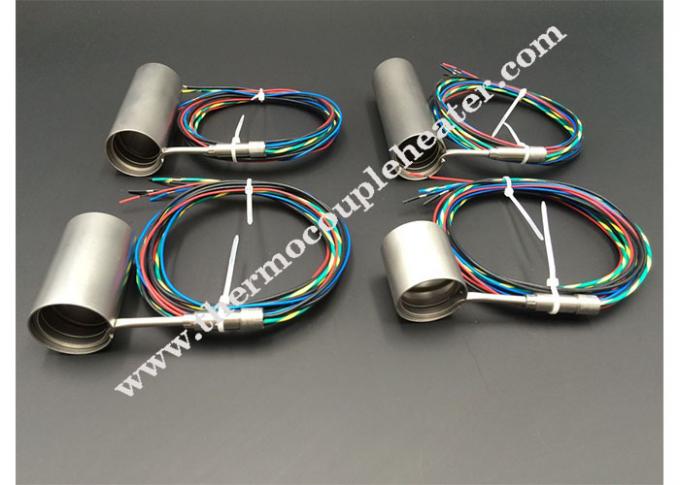

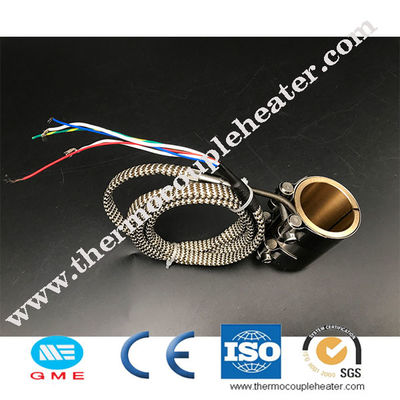

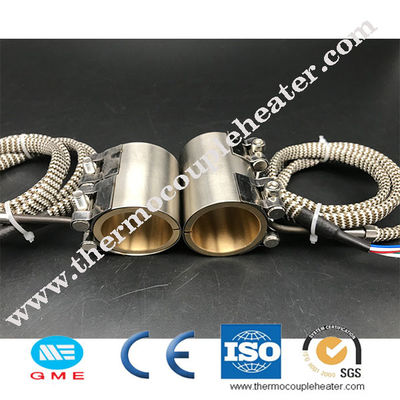

High Quality Hot Runner Spring Coil Nozzle Heater With Thermocouple
Description:
1) Cross section specification:
3.0 x 3.0mm, 3.30 x 3.30mm, 3.5 x 3.5mm, 4 x 4mm etc.
4.20 x 2.20mm, 4.20 x 2.50mm
Any other cross sections can be manufactures and supplied on request.
2) Coil ID:10mm~38mm
Heating ring height: 40mm~200mm
3) The normal voltage is 230 V, We can make the voltage as you need .
4) The normal cable length is 1000mm ,also we can make the length as you need
5) The ledding wire type use fiberglass silicone copper wire ,PTFE wrapped copper wire ,and others should b customized .
6) Material:SS304,Mgo ,Heating coil
7) Surface highest temperature as your vequirement :750°C
8) Various sizes of cross section for your choice,including special specification.
9) Power density reaches 20 w/cm square.
10) Thermocouple type J/K/E can be attached.
Application:
1) Hot metal forming dies and punches
2) Plastic injection molding nozzles & Bushings
3) Medical, analytical equipments
4) Restaurant and food processing equipment
5) Packaging machineries
6) Laminating and printing presses
7) Air heating
8) Semiconductor manufacturing and water processing
9) Heating in a vacuum environment
10) Other precision heating system
