| Place of Origin: | China |
| Brand Name: | GME |
| Model Number: | GME-830S |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 1000 units per month |
| Voltage: | AC 220V | Motor: | Three Phase Machine 750W(1/2hp) |
|---|---|---|---|
| Number Of Wire Coil: | 1 | Size: | 800*330*380mm |
| Gross Weight: | 75KG | Application: | Mica Band Heating Wire Winding |
| High Light: | Heating Resistance Wire Roll Winding Machine,AC 220V Roll Winding Machine,Mica Band Heater Making Machine |
||

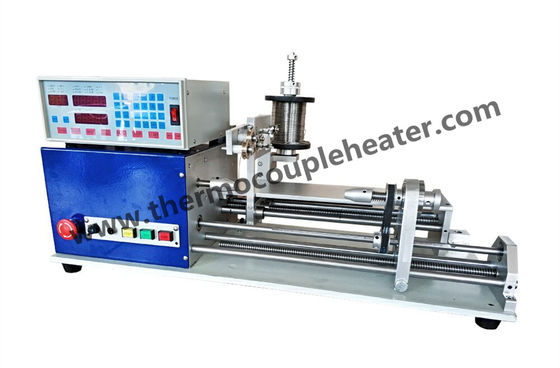

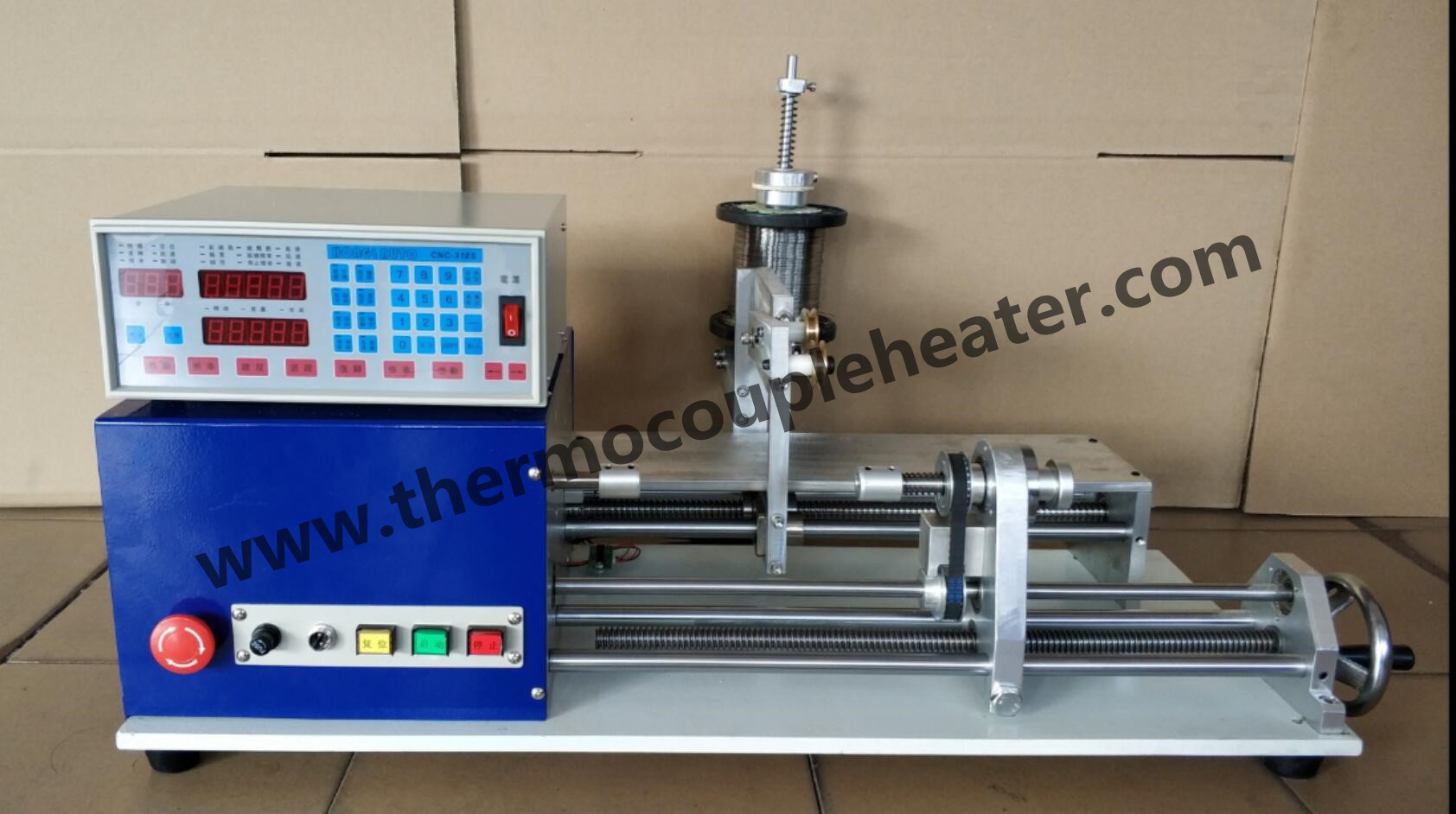

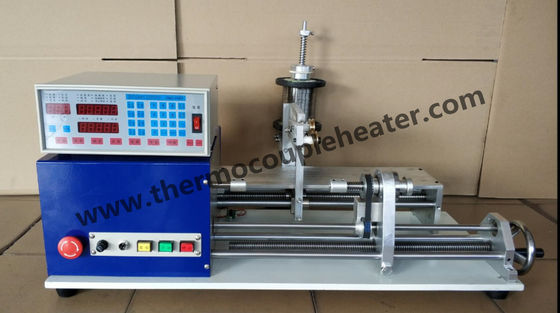

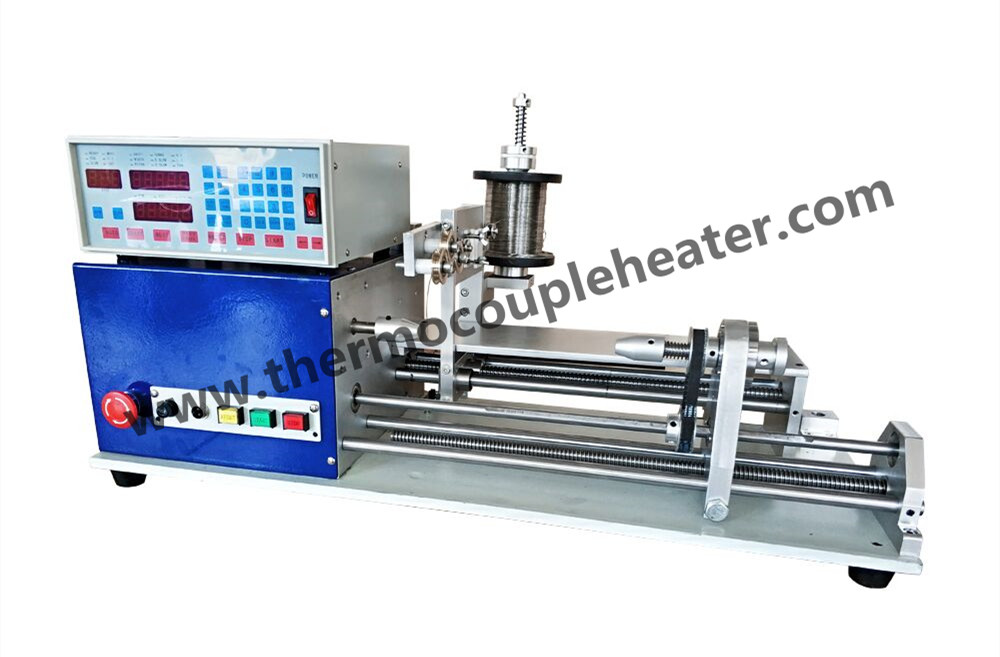

Mica Band Heaters Heating Resistance Wires Winding Rolling Machine
Introduction
Long trip type mica winding machine can set starting point, wire size, winding width, number of turns, climbing turns, stop turns, winding speed,slow winding speed,winding direction, stopping at both ends, automatic reset, automatic start, auto jump to next slot and winding.
Scope of application
Suitable for heating wire, resistance wire, mica sheet around the heating wire, mica band heating wire winding, porcelain tube winding , and all longer coil products.
Technical data
| Item | Technical Parameter |
| Model | GME-830S |
| Power / voltage | single phase AC 220V 50/60HZ(110V optional) |
| Motor | three phase machine 750W(1/2hp) |
| Spindle speed | 3000rpm |
| Spindle motor | Brushless DC |
| Number of wire coil | 1 |
| Winding wire gauge | Φ0.03-0.80mm |
| Winding length | 1-320MM |
| Winding diameter | 1-80mm |
| Storable winding groups | 999 groups |
| Counting resolution | 0.1 circle |
| Complete appliance weight | 52kg |
| Machine Size | 800*330*380mm |
| Wooden box size | 950*500*560mm |
| Gross weight | 75KG |
