Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 200 pieces |
|---|---|
| Packaging Details: | Carton, Wooden Box, Pallet |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2,500,000 pcs per month |
| Usage: | Wiring Of Heater Power And Thermocouple Wiring In High Temperature Locations | Insulating Material: | Ceramics |
|---|---|---|---|
| Conductive Base: | Nickel-plated Brass | Screws: | Galvanized Steel |
| Size: | Customzied | Color: | White |
| Interface Type: | AC/DC | Temperature Range: | Up To 400℃ |
| High Light: | Ceramic Thermocouple Terminal Block,Porcelain Thermocouple Terminal Block,thermocouple ceramic terminal blocks |
||

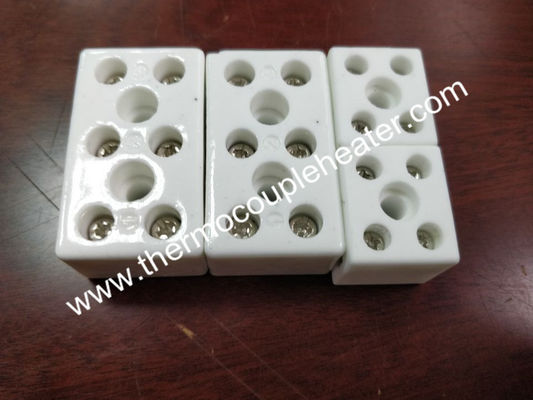

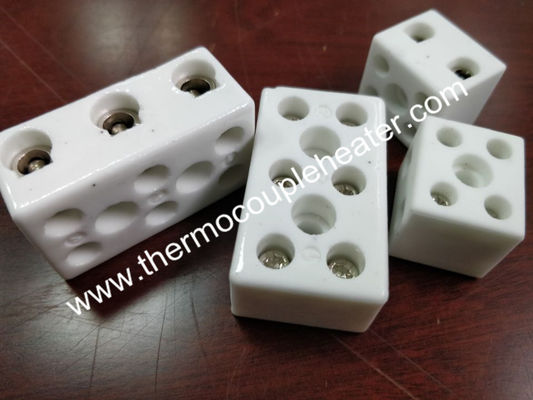

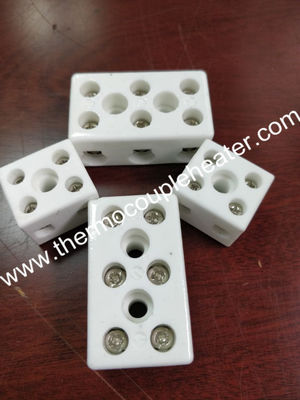

High Temperature Porcelain Ceramic Terminal Blocks Wire Connectors Accessories
Description :
These high quality ceramic terminal blocks make wiring connections to heaters efficient and easy and have a touch safe design.
Ceramic Wire Nut Connectors are used to connect two wires together in high temperature applications. Ceramic Heater Accessories include Insulating Bushings, Ceramic Beads and Screw Terminal Covers.
Terminal Block are high temperature terminal block ceramic, the basic color is white, and it is not Glazed type. There are reserved install holes on base. Load current can be 15A, 20A, 30A, 40A, 50A, 60A, 65A, 100A. The Working Temperature of Ceramic Terminal Blocks are 250℃, up to 400℃.
Features:
Used in high temperature condition.
Application:
Suitable for ovens, furnaces, kilns, infrared heaters, quartz tube heaters, catering equipment, etc.
There are large variety of goods that have not listed inside the website, if you have any questions or requirements, please free tocontact us, we will reply as soon as possible.
