Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Boxes or Wooden Cartons |
| Delivery Time: | 7-15 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000pcs/Month |
| Lead Wire: | Silicon, Glassfiber | Shealth Material: | SS304 ,SS321 ,SS316 |
|---|---|---|---|
| Color: | Biack And White | Wattage Tolerance: | +5%, -10% |
| Application: | Oil, Water Or Other Liquid Etc | Power Source: | Electric |
| Voltage: | 12-480v | Dimension(L*W*H): | Customizable |
| Type: | Air Heater, Cartidge Heaters | Insulation: | Mgo Powder |
| High Light: | SS316 Sheath 12V Cartridge Heater,SS304 Sheath 12V Cartridge Heater,ss321 sheath electric cartridge heaters |
||

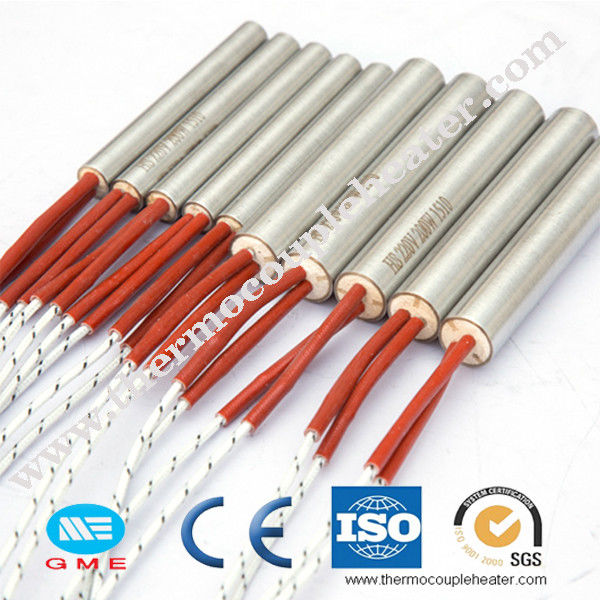

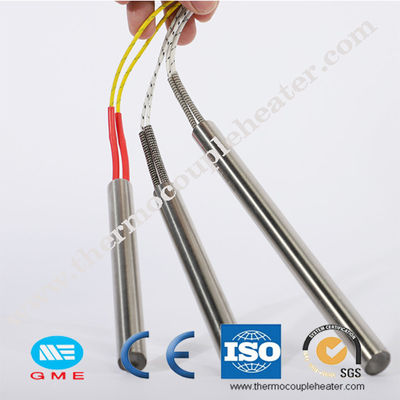

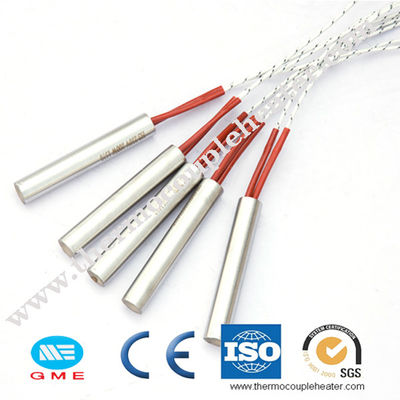

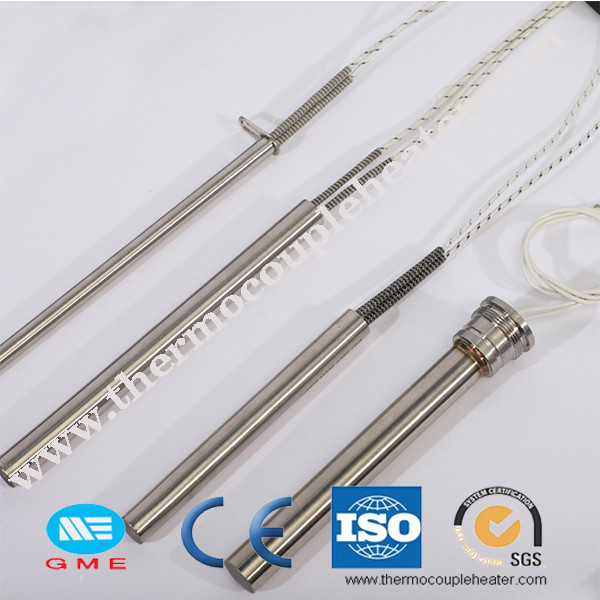

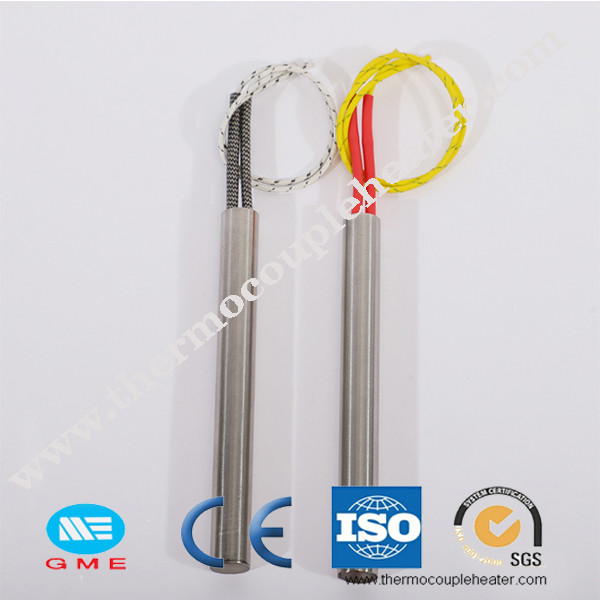

single-point electric rod 12v heating element cartridge heater
Description:
Classical structure of cartridge heater (Popular structure) is same to heating tube,Generally consists of five parts:Insulator, sealing material,leading rods, filling material, electric wire, metal protective tube, terminal.Coil electric wire and leading rod are set in the metal protective tube.
Specification:
Internal wiring port section of the heating tube does not adopt the terminal connection mode,
Making it havhigh temperature resistance and strong mechanical properties.
The port part of the heating tube adopts terminal connection mode Is resistant to
high temperature and works in the heating medium which can not conduct wiring at both ends.
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Date sheets
| Resistance heating wire | NiCr 80/20 wire |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
| Thermocouple Location | type J / K / Ground wire |
Application:
1 Semiconductor chamber heating
2 Semiconductor wafer lead connection
3 Semiconductor wire and die bonding
4 Freeze protection and deicing of equipment in cold climates or applications
5 Humidity Control
6 Patient Comfort heating used in medical devices
7 Mold die and platen heating
8 Seal bars used in packaging equipment
9 Test sample heating in gas chromatography
