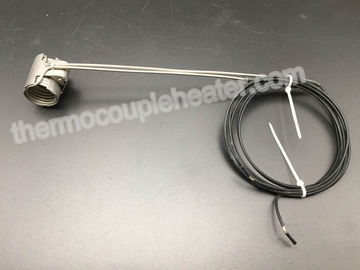

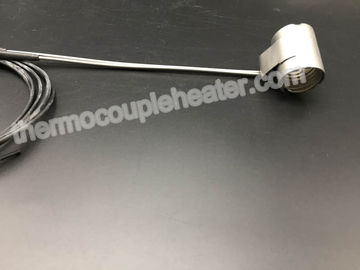

ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold

ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold

    • ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold
    • ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold
    • ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold
  • ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001,CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 5-10 working days
    Payment Terms: L/C,T/T, PAYPAL
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold Application: Plastic Injection Mold
    Voltage: 220V Wattage: 268W
    Width: 1.2" Inner Diameter: 0.75"
    Heating Elements Cross Section: 1.8x1.8mm, 1.8x3.2mm Leads: 48"
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    ,

    UL Axial Clamp Coil Heaters



    Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold

    Description



    Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.



    The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.It's high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.

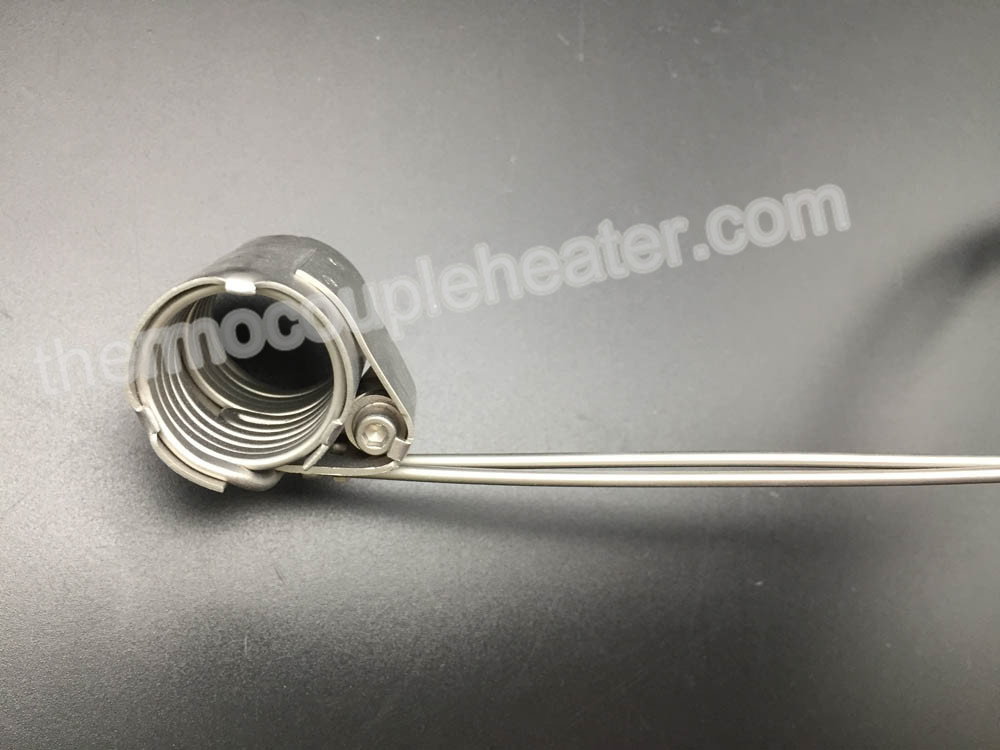

    ISO9001 CE / UL Axial Clamp Coil Heaters For Hot Runner Plastic Injection Mold



    Standard Axial Lock-up Heaters
    Diameter Width Watts Volts
    “3/4” “(19.05mm)” “1.2” “(30mm)” 149W 240V
    “3/4” “(19.05mm)” “1.2” “(30mm)” 268W 240V
    “7/8” “(22.22mm)” “1.2” “(30mm)” 268W 240V





    Technical Specifications



    1. Heater Sheath: CrNi Steel

    2. High Voltage Stability: 800VAC

    3. Insulation Resistance: >= 5M ohm at 500 VDC (Cold)

    4. Leakage Current: <= 0.5 mA at 250VAC (Cold)

    5. Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%

    6. Maximum Voltage: 250V

    7. Standard Connection: 72” to 500 deg. F



    Product name Coil heater heating element Axial Clamp Heater
    various sizes of cross section 4.2*2.2mm, 4*2mm, 3.2*1.8mm, 4*4mm, 3.5*3.5mm, 3*3mm and other specificaitons
    Material 316SS,304SS,Brass
    Voltage 220V, 230V, 240V or according to your requirement
    Power According to your requirement
    Thermocouple with or without Type K,J,T
    Leading wire Stainless steel braided,Nylon braided





    Features



    1. Mini coils in direct contact with nozzle

    2. Single allen screw adjustment for tightening and removal

    3. Profiled for more heat at the Tip

    4. Positive locking positioning

    5. Replaceable external thermocouple

    6. Caps and Closure Applications

    7. Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple

    8. Also used in Plastic molding for the cosmetic industry



    Application,



    1.Plastic Injection Machine
    2.Plastic Extruder Machine

    3.Hot Runner & Bushings
    4.Tube Extrusion
    5.Pipe Forming
    6.Hot Runner Mould
