| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15Wroking Days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Split Cartridge Heater | Thermocouple: | None |
|---|---|---|---|
| Tube Material: | High Quality 304SS, 316L | Resistance Wire: | Ni80Cr20 |
| Insulation Material: | 99.99% High Purity Magnesium | Tolerance Of Length: | +/-1.5% |
| Wattage: | 500W | ||
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

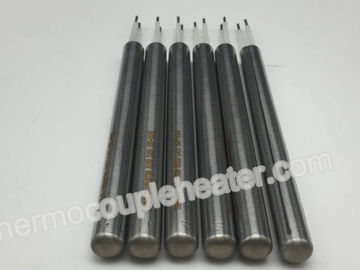

Diameter 0.375 inch Split Sheath Cartridge Heater With Solid Pin
Description:
Split-sheath construction allows each half of heater to expand independently. Continuous-coil design eliminates cold spots between sections. The unique split-sheath design, the heaters run more efficiently, last longer, and are more easily replaced than conventional heaters, dramatically reducing the overall cost of process heating. Split-sheath construction allows each half of the heater to expand independently when energized for exceptional metal-to-metal contact with the surrounding bore. This in turn maximizes heat transfer, even in oversized bores. Greater compaction of magnesium oxide around the coil provides superior heat conduction to the outer sheath, resulting in more responsive sheath temperatures, higher operating temperatures with cooler internal operation, and up to five times longer life.Split-Sheath Cartridge Heaters can be constructed to deliver full heat to tip, making them suitable for injection molding applications.
Feature
Technical Details
| 1 | Inside magnesium oxide insulation material: | 99.99% high purity magnesium oxide |
| 2 | Heating element: | high durance and high temperature NiCr2080 heating elements from Germany |
| 3 | TC material: | High quality TC elements to ensure ±5 ℃ tolerance |
| 4 | Max working temperature: | 400℃ |
| 5 | High voltage stability test: | Less than 0.5mA leak under 1000V for 30 seconds |
| 6 | OD range: | 3mm-32mm |
| 7 | The range of the Total Length: | 25mm----2500mm |
| 8 | Maximum power density: | 40w/cm² |
| 9 | Unheated zone: | 10mm at lead end and about 5mm at bottom |
| 10 | Lead options: | A: Solid Nickel Pin: wire 300℃ or 500℃ B: Swaged in wire: 500℃ wire coming from inside |
Applications:
Mould tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and others.
