Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Dimension: | Customized |
---|---|---|---|
Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
Surface Finishing: | Bright Or Soft Annealed | Insulation Resistance: | > 5 MΩ |
High Light: | electric resistance heater,coil heater with thermocouple,MgO Electric Induction Heater |

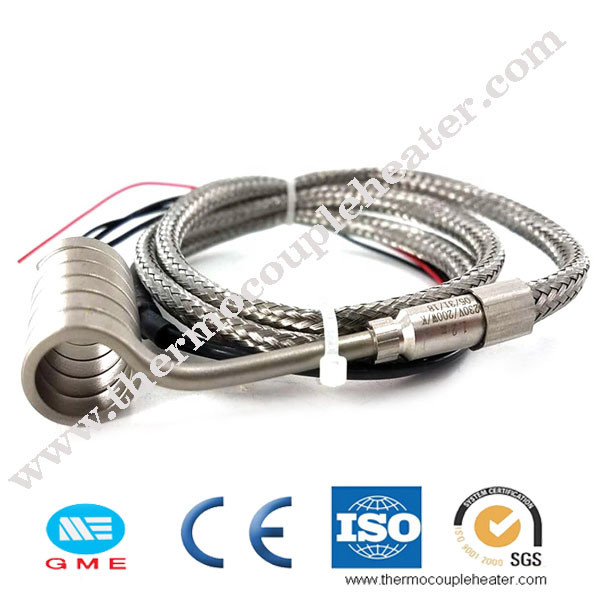

High pure MgO Induction Heater Hot Runner coil spring heater
Description:

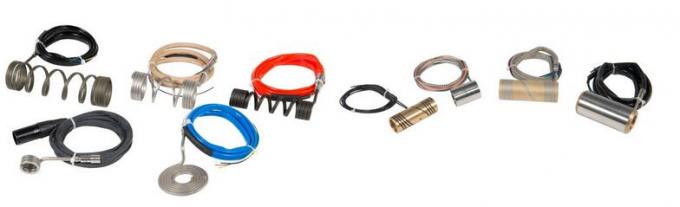

1. Hot runner heater also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Usually,coil heaters are configured as small diameter,high performance nozzle heaters that are fully annealed.
3.Coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4.Coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.
Specification:
Sheath Material
|
SS 304
|
SS 316
|
SS 310S
|
Resistance Wire
|
Nichrome
|
|
|
Temperature
|
500 degree
|
500 degree
|
800 degree
|
Heater Length
|
Min 100mm
|
Max 3000mm
|
|
Lead wire material
|
SS braid
|
Fiber glass
|
Silicone
|
Lead wire length
|
1m
|
2m
|
3m
|
Thermocouple type
|
K
|
J
|
without thermocouple
|
Earth wire
|
with
|
without
|
Product Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
