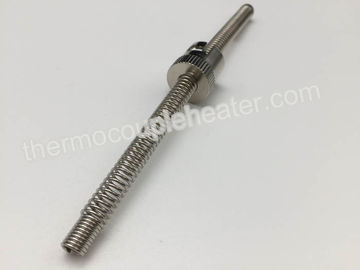

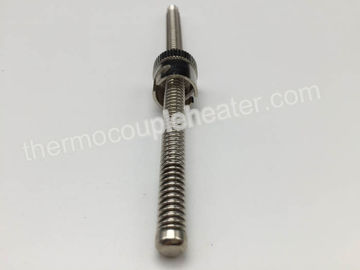

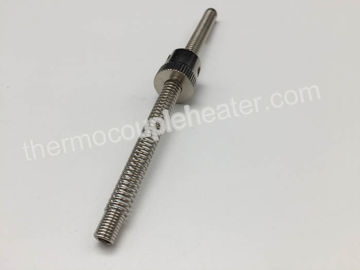

Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap

Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap

    • Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap
    • Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap
    • Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap
    • Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap
  • Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Thermocouple Bayonet Fittings

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypal
    Supply Ability: 15,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Thermocouple Bayonet Fittings Probe Length: 15mm
    Materials: Brass Or Stainless Steel Application: Temperature Measurement
    Usage: Industrial, Thermocouple Accessories Probe Material: 304SS / 316SS / 310SS
    Wire Length: 2 Meter Standard: Silver Plated/non Silver Plated



    Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap




    1. Bayonet Fittings Brief Introduction


    Thermocouple bayonet fittings is a kind of metal accessories for thermocouple,RTD sensor. Various options for different materials, external threads and outer diameters of probe to suit.


    Fitting size range from 1/16" thru 2" (2 mm thru 38 mm O.D. tubing) with numerous choices in end
    connections and patterns. They are rated to the maximum working pressure of the recommended tubing.


    2. Bayonet Fittings Characteristics



    • Spring thermal element with good shock-proof performance;
    • Wide mesuring range (0~1600 degree Celsius);
    • High mechanical strength and good pressure-resistant performance
    • Easy assembly and convenient for replacement;


    3. Bayonet Fittings Parameter



    Adjustable Thermocouple Parts And Components Compression Spring Bayonet Cap


    4   Bayonet Fittings Requirement options:


    Tell us following technical data on the bayonet fittings,  we will offer you the goods with the best quality and the most competitive price:

    •  Length of the bayonet cap? From 15mm to 30mm.
    • Bayonet cap material?
    • Bayonet adaptor material?
    • Bayonet adaptor length? From 15mm to  80mm.
    • One slot or two  slots?
    • Dimensions described in the  drawing.
    • What' s the external thread type for adaptor?
    • The information above need to be offered when you order, Better to offer the drawing
    • Customized items are open to discuss.
    • Bayonet cap is to fit spring or amour?
