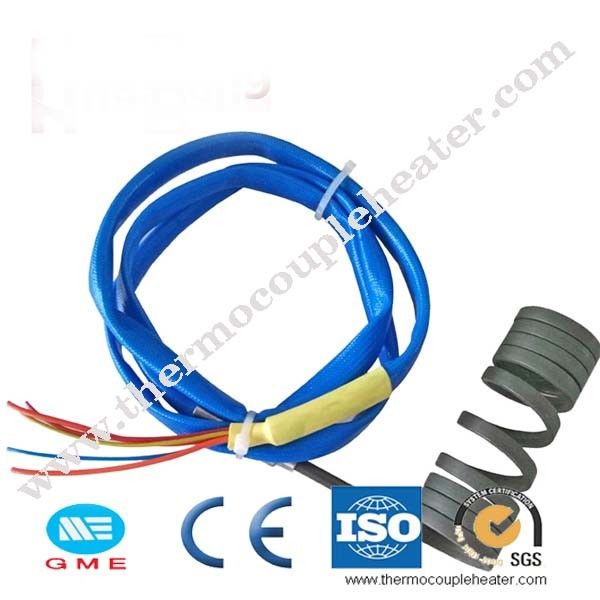

Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine

Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine

    • Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine
    • Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine
    • Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine
    • Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine
  • Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 120v 220v 240v 380v, 220V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
    Lead Wire: Teflon, Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
    Color: Silver Or Fully Black



    Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine



    Description:



    1.Hot runner coil heaters also know as cable heaters can be formed to a variety of shapes as required by its many application.



    2.Frequenty though,coil heaters are configured as samll diameter,high performance nozzle heaters that are fully annealed.



    3.Spring hot runner coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.



    4.Hot runner coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.



    Specification:



    1. Standard sizes available with various cross section;

    2. Various Watt Density options available;

    3. Design with Terminal Exits;

    4. Available with built in Thermocouple;

    5. Designed for even heat appearance.



    Cross Section
    1.5mm , 1.8mm, 1.3x2.3mm
    Sheath material
    Chrome Nickel Steel
    Insulation material
    High purity MgO
    Heating element
    NiCr 8020
    Voltage Range
    Maximum 250 volts, standard 230 volts
    Power rating
    Depending on application
    Insulation Resistance
    10 MW @ 500V DC (special on request)
    Power tolerance
    ± 10% (Tighter Tolerance available)
    Current Leakage
    < 0.5 mA @ 253 V AC
    Unheated Length
    Minimum 25 mm plus adapter connection
    Minimum Bending diameter
    6mm

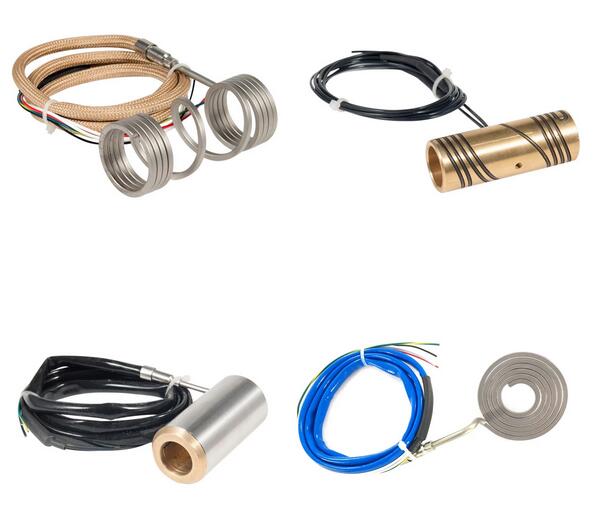

    Spring Induction Coil Heaters Built In Thermocouple For Plastic Injection Machine



    Application:



    1. Injection moulding machine nozzle
    2. Hot Runner Nozzles & Bushings
    3. Packaging machineries
    4. Hot runner Injection moulds.
    5. Injection & Blow Moulding Machine Nozzles.
    6. PET prefrom & Thin wall container Moulds
    7. Hot runner Manifolds.
