Stainless Steel Electric Heating Element Sheath Mini Band Heater With Clamp

Stainless Steel Electric Heating Element Sheath Mini Band Heater With Clamp

Stainless Steel Electric Heating Element Sheath Mini Band Heater With Clamp

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: export carton box
Delivery Time: 10 days after receiving full payment
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 500000pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel Power: 270W
Voltage: 220V

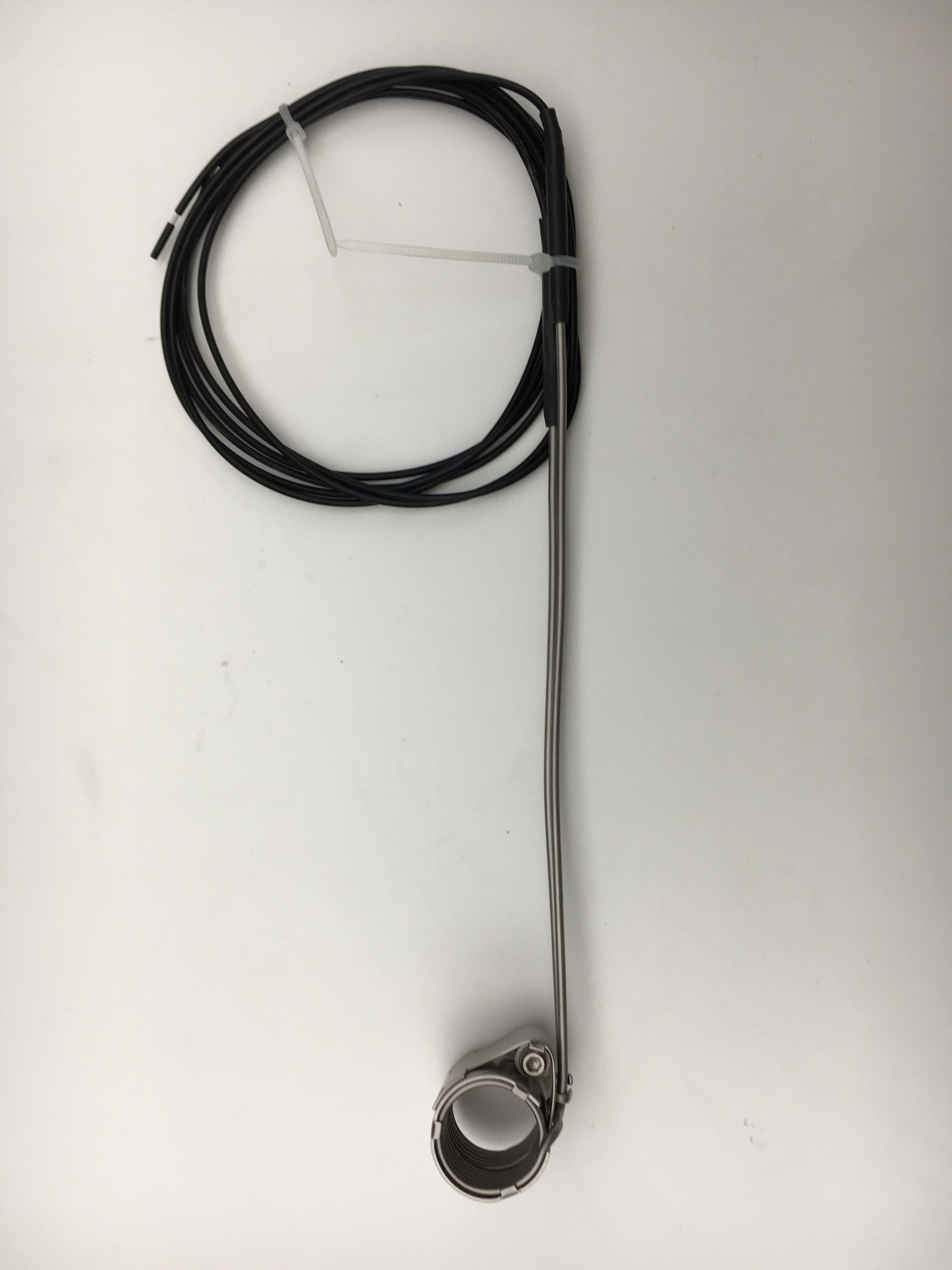

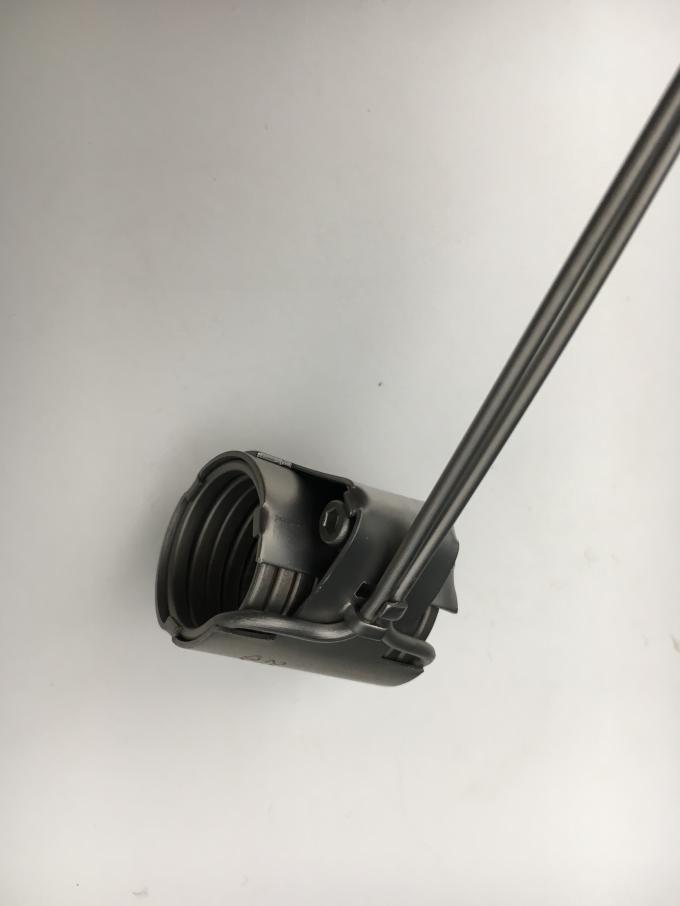

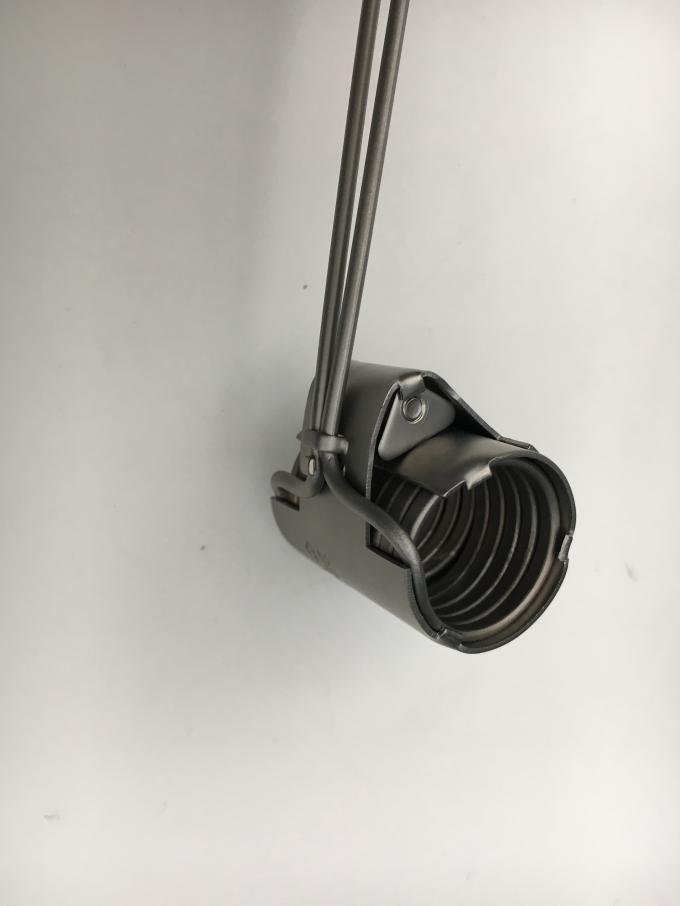

Stainless Steel Electric Heating Element Sheath Mini Band Heater With Clamp



Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance. Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Ceramic Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot.





Mini Band Heater description:



Nozzle & Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance. Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.


Mini Band Heater features:

  • The sheath of the heater is rust resistance.
  • High class Nickel Chrome ribbon is used.
  • Maximum power: 4.5w/cm2
  • Operating temperature up maximum of 500 degree centigrade
  • Axial, Radial & Tangential terminals are available
  • Thermocouple holes can be provided as per client's requirements
  • With J or thermocouple, or without

Mini Band Heater applications:

  • Plastic processing Machinery
  • Injection & Blow Molding
  • Extruders
  • All Plastic & Rubber Processing Machinery
  • Many other Applications. (Medical, Lab-equipments…etc)



Application for Hot Runner Coil and Cable Heaters:



     1. Injection moulding machine nozzle

     2. Hot Runner Nozzles & Bushings

     3. Packaging machineries

     4. Hot runner Injection moulds.

     5. Injection & Blow Moulding Machine Nozzles.

     6. PET prefrom & Thin wall container Moulds

     7. Hot runner Manifolds.
