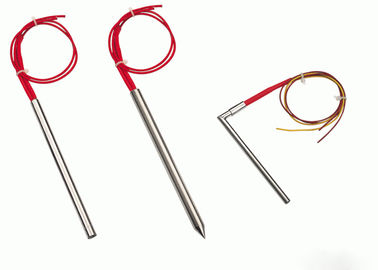

Stainless Steel Custom Electric Cartridge Heaters For Plastic Injection Machine

Stainless Steel Custom Electric Cartridge Heaters For Plastic Injection Machine

Stainless Steel Custom Electric Cartridge Heaters For Plastic Injection Machine

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: export carton box
Delivery Time: 2 weeks after receiving full payment
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304/316/Incoloy Heating Conductor: NiCr8020



Top quality Cartridge Heaters for Plastic injection Machine





Description of Cartridge Heater:

Cartridge Heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,smallmould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.

High-wattage cartridges belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements. The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, Ultramar cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.



Datasheet of Cartridge Heater:



Single-Ended tubular heater covering: SUS304/SUS316L/Incoloy 800/Titanium etc.



Insulation: Compacted magnesium Oxide



Heating conductor: NiCr8020



Voltage: 6V to 650v



Power density: Maxi 50W/CM2



Temperature resistance: 800 centi degree



Size tolerance: Less than 0.6mm



Thermocouple: J type, K type etc.





Applications

---Hot runner system -Heating of manifolds

---Injection moulding -Internal heating of nozzles

---Packaging Industry-Heating of cutting bars

---Packaging Machinery-Heating of hot stamps

---Medical Equipment Dialysis,Sterlization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer

---Laboratories-Heating of analytical equipment

---Telecommunications:Deicing Enclosure Heaters

---Food Service Steamers.Dish Washers

---Other electric heating industry
