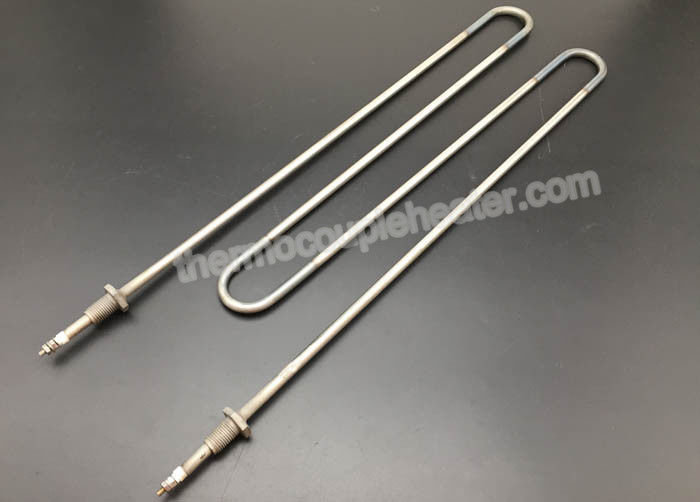

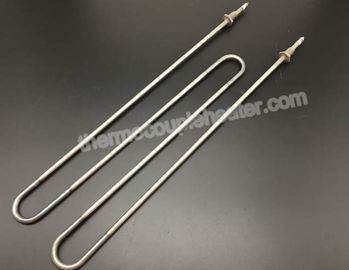

230V 2000W Formed Tubular Industrial Process Heaters Stainless Steel 304 8mm Diameter

230V 2000W Formed Tubular Industrial Process Heaters Stainless Steel 304 8mm Diameter

    • 230V 2000W Formed Tubular Industrial Process Heaters Stainless Steel 304 8mm Diameter
    • 230V 2000W Formed Tubular Industrial Process Heaters Stainless Steel 304 8mm Diameter
  • 230V 2000W Formed Tubular Industrial Process Heaters Stainless Steel 304 8mm Diameter

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 10 working days or above
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 230V 2000W 8mm Diameter Stainless Steel 304 Formed Tubular Heater For Industry Application: Industrial Heating Elements
    Sheath Material: Incoloy 800, SS304, SS321, SS316 Voltage: Customized
    Resistance Wire: Ni80Cr20 Power: Customized

    230V 2000W 8mm Diameter Stainless Steel 304 Formed Tubular Heater For Industry





    Product Description



    Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.



    Tubular heating element are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.



    Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application.




    Specification



    Voltage&Power:12V-480V,  200W-100,000W

    Specification



    1. The tube sheath materials available in SUS304,SUS316,SUS321 INCOLOY840,Incoloy800

    2. Tube Diameter : 6.6mm ~ 25mm.

    3. The surface load of the heating tube is 9.8W/cm2.





    Feature


    1. Shorter process time
    2. Lower power needed
    3. No contamination from dust: No convection needed
    4. High safety: No spark, no naked fire, highly insulated, the radiation of the harmony heater is not harmful to human bodies
    5. Low cost with long service life and high efficiency
    6. Easy installation
    7. Fast heat exchange rate
    8. Quick temperature raising rate
    9. Longer transfer of heat radiation



    Application


    Formed tubular heating elements is widely used in domestic or commercial water dispenser,coffee machines,water and oil heaters,showers water machine,dishwashers,etc.
