Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Color: | Silver Or Fully Black | ||
| High Light: | electric resistance heater,coil heater with thermocouple |
||

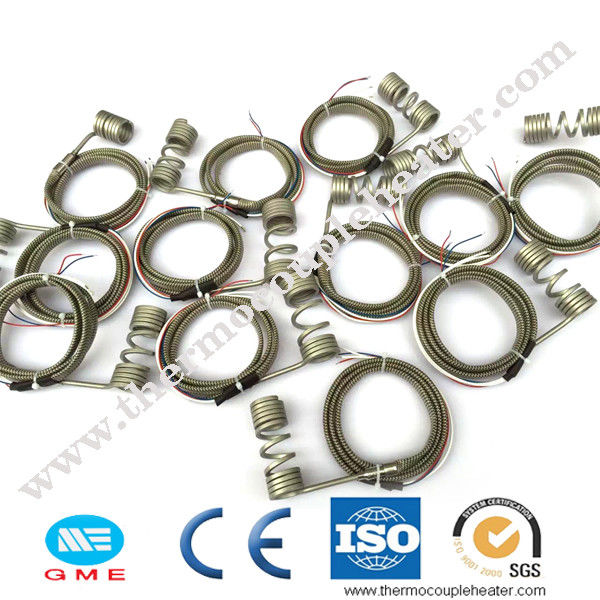

220v1500w electric Hot runner coil heaters for injection molding /fog machine
Description:
1) The Hot Runner Coil Heater features continuous operating temperatures up to 1200°F. Rapid heating and cooling occur, due to the low mass construction. All heating elements are sealed from contamination and the stainless steel sheath provides maximum corrosion resistance.
2) An optional internal thermocouple may be utilized for precise control. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.
Specification:
We're a manufacturing and trading combo, produce and Specialize in hot runner coil spring heater for more than 10 years.
As the GME Spring Hot Runner Coil Heaters With Thermocouple are customized for different sizes and shapes, we can not put all models on the web page.
Compact MgO Steel tube manufactured of chrome nickel and temperature resistant wire are used for offering rigid and compact construction to these heaters. Our range of products Coil Heaters includes Non-Corrosive Coil Heaters, Hot Runner Coil Heaters, and Hot Bushings & Runner Coil Heaters.
|
Build-in thermocouple power
|
With or without J/K thermocouple
|
||
|
Available sheath
|
nylon,metal braided,fiberglass ,silicone rubber, kevlar
|
||
|
Sheath's color
|
standard is black,other color is also available
|
||
|
Resistance Wire
|
Ni Cr 80-20
|
||
|
Die Electrical Strength
|
800V A/C
|
||
|
Insulation
|
>5 M W
|
||
|
Thermocouple
|
J type (Standard) or K type
|
||
|
Unheated Length
|
35 mm Standard
|
||
|
Wattage Tolerance
|
+ 10% (+ 5% Available Upon Request)
|
||
|
Resistance Tolerance
|
+ 10% (+ 5% Available Upon Request)
|
||
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds.
