12v Immersion Cartridge Heaters Industrial Heating Elements 220v 500w

12v Immersion Cartridge Heaters Industrial Heating Elements 220v 500w

12v Immersion Cartridge Heaters Industrial Heating Elements 220v 500w

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE
Contact Now
Detailed Product Description
Material: Stainless Steel SS316 Power: 500W
Voltage: 220V

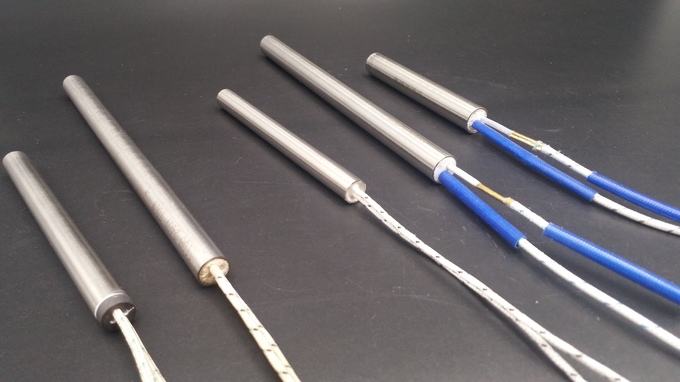

                    12V Immersion Cartridge Heater Heating Element 220V 500W



Material Specification

· Welded watertight base (Tig).

· Stainless steel AISI 304/316/321/ INCOLOY.

· Disc ceramic insulator.

· Pure magnesium oxide (UCM, Tateho).

· Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.

· MGO Rod: Tateho, OTC.

· High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.

· Conductor without connections.

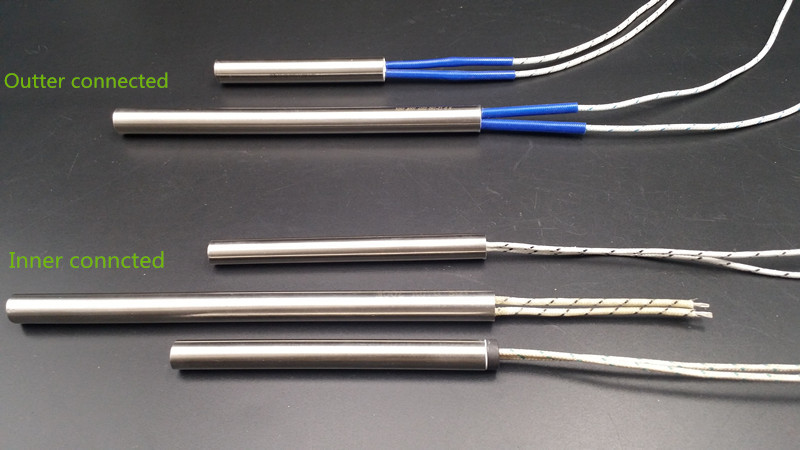

Connecting wires

a. Fiberglass insulation nickel wire (temperature 450 degrees -750 degrees)

b. Crimp Teflon wire (temperature 250 degrees)

c. Crimp silicon insulated wire (temperature 200 degrees)


Tolerance -0.02mm-0.08mm
Tube material SS321, SS316L, INCOLY840, Titanium
Insulation material high-purity Mgo imported from USA
Resistance wire Ni80Cr20
Density Max 40W/CM²
Operating temperature Max850ºC
Wattage tolerance +5%,-10%
Electrical property

leak current is less than 0.5mA





· Injection moulding - Internal heating of nozzles

· Hot runner systems - Heating of manifolds

· Packaging industry - Heating of cutting bars

· Packaging industry - Heating of hot stamps

· Laboratories - Heating of analytical equipment

· Medical - Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

· Telecommunications - Deicing, Enclosure Heater

· Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters

· Food Service - Steamers, Dish Washers,

· Industrial - Packaging Equipment, Hole Punches, Hot Stamp.



12v Immersion Cartridge Heaters Industrial Heating Elements 220v 500w
