Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO |
| Minimum Order Quantity: | 50pcs/size |
|---|---|
| Price: | negotiate |
| Packaging Details: | export carton box |
| Delivery Time: | 12 days |
| Payment Terms: | Western Union, L/C, T/T,paypal |
| Supply Ability: | 1000000 pcs/month |
| Cross Section: | 4.2*2.2mm | Leadwire: | 1000mm |
|---|---|---|---|
| Thermocouple Type: | K / J | Name: | Hot Runner Coil Heater |
| High Light: | coil heater with thermocouple,electric resistance heater |
||

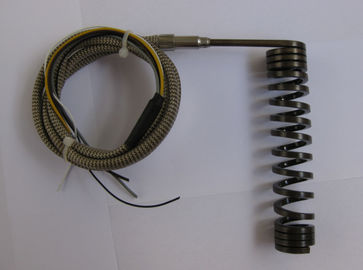

Hot Runner Coil and Cable Heaters with thermocouple K/J
1 Introduction for Hot Runner Coil and Cable Heaters
Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
2 Cross section for Hot Runner Coil and Cable Heaters
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4 etc.
4.20 x 2.20, 4.20 x 2.50
Any other cross sections can be manufactures and supplied on request.
3 Features for Hot Runner Coil and Cable Heaters
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.
