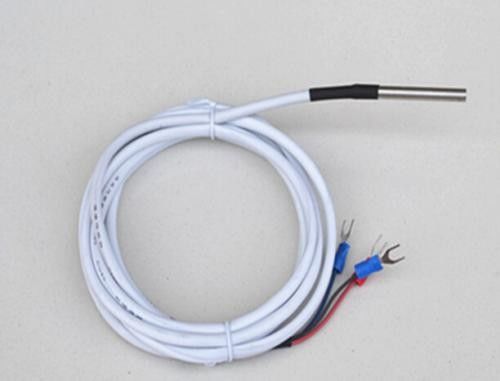

2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve

2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve

    • 2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve
    • 2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve
    • 2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve
  • 2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve

    Product Details:

    Place of Origin: Wuhan, China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Price: Negotiable
    Packaging Details: Normal exporting cartons
    Delivery Time: 5-8 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Usage: Industrial Temperature Range: -200-600
    Conductor Material: Copper Heat Resistance Application: Temperature Sensor
    Probe Dia: 2-25mm Wire Sleeve: Fiberglass/steelbarded
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

    rtd temperature sensor for bearing pt100 rtd with compensation cable rtd thermometer

    Thermocouple Description:



    Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.

    Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.

    Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.



    Thermocouples sensors technical indicators:



    Product Conductor material Type Graduation

    Use temperature°C

    (short time)

    Use temperature°C













    Thermocouple

    PtRh30-Ptrh6 WRR B 0-1800°C 0-1600°C
    PtRh10-Pt WRP S 0-1600°C 0-1300°C
    PtRh13-pT WRB R 0-1600°C 0-1300°C
    NiCrSi-NiSi WRM N 0-1000°C 0-1000°C
    NiCr-NiAl(Si) WRN K 0-1200°C 0-900°C
    NrCr-constantan WRE E 0-700°C 0-600°C
    Iron- Constantan WRF J 0-600°C 0-500°C
    Copper-Constantan WRC T 0-400°C 0-350°C



    Thermal resistance

    Copper heat resistance   Cu50   -50-150°C
      Cu100   -50-150°C
      Pt100

    -200-600°C

    2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve

    2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve2 - 25mm Probe RTD Temperature Sensor Copper Heat Resistance Steelbarded Wire Sleeve
