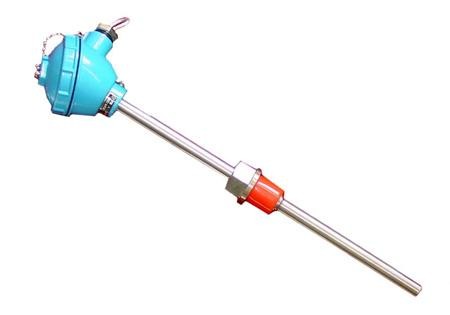

Fast Response 5mm Thermocouple RTD SS316L, Thermocouple Sensor

Fast Response 5mm Thermocouple RTD SS316L, Thermocouple Sensor

Fast Response 5mm Thermocouple RTD SS316L, Thermocouple Sensor

Product Details:

Place of Origin: Wuhan, China
Certification: ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Normal exporting cartons
Delivery Time: 5-8 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Usage: Industrial Temperature Range: 0-1800°C
Calibrations: K, J, T And E Calibrations Junctions: Grounded, Ungrounded
Accuracy: +/-1°C, +/- 1 Centi Degree Thermocouple Wire: Stainless Steel Braided Or Hose
High Light:

temperature sensor rtd

,

resistance temperature detecto

Description of thermocouple:

Thermocouple consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to, the difference of temperature of the junction to other parts of those conductors. Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity.



Features of thermocouple:

• Customized diameter, sheath lengths and lead length

• Stainless steel braided or hose protection

• K, J, T and E calibrations

• Grounded, ungrounded and exposed junctions

• Flat and drill point

• Epoxy sealed cold ends

• Flexible extensions

• Miner coated and stainless steel sheaths

• Straight, 45° bend or 90° bend

• 12 mm and 15 mm locking bayonet caps



Performance Capabilities of thermocouple:

Maximum Temperature Tolerance of thermocouple with glass fiber insulation: 600 cent degree for non-stop working.

Maximum Temperature Tolerance of thermocouple with mineral fiber insulation: 1500 cent degree non-stop working.

Temperature test precision: +/-1 cent degree



Applications of thermocouple:

• Food processing equipment

• De-icing

• Plating baths

• Industrial processing

• Medical equipment

• Pipe tracing control

• Industrial heat treating

• Packaging equipment

• Liquid temperature measurement

• Refrigerator temperature control

• Oven temperature control



Datasheet of thermocouple:

Product Conductor material Type Graduation

Use temperature (°C)

(short time)

Use temperature (°C) (Continuous

operation)



Thermocouple PtRh30-Ptrh6 WRR B 0-1800°C 0-1600°C
PtRh10-Pt WRP S 0-1600°C 0-1300°C
PtRh13-pT WRB R 0-1600°C 0-1300°C
NiCrSi-NiSi WRM N 0-1000°C 0-1000°C
NiCr-NiAl(Si) WRN K 0-1200°C 0-900°C
NrCr-constantan WRE E 0-700°C 0-600°C
Iron- Constantan WRF J 0-600°C 0-500°C
Copper-Constantan WRC T 0-400°C 0-350°C
Thermal resistance Copper heat resistance   Cu50   -50-150°C
  Cu100   -50-150°C
  Pt100

-200-600°C

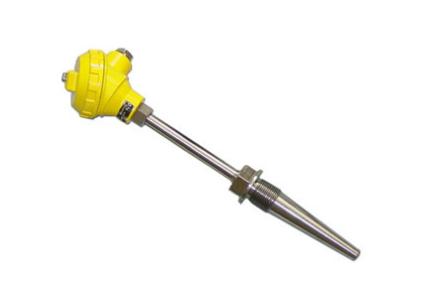

Fast Response 5mm Thermocouple RTD SS316L, Thermocouple Sensor
