Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Use Temperature: | -200℃~1300℃ | Voltage: | 12V~440v |
|---|---|---|---|
| Various Shapes: | Available | Power Source: | Electric |
| Diameter: | 1.2~4mm | Sample: | Available |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

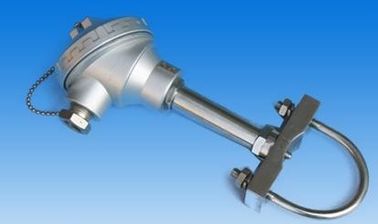

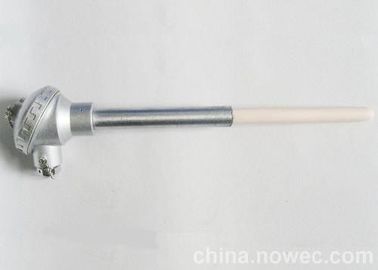

Structure of E Type thermocouple :
Thermocouples are manufactured in many different configurations for multitude of applications.Diameters,lengths,sheath material,lead material,lead lengths and sensor material are just a few of the variable that go into determining the style of thermocouple when manufactured.The main determining factors of what type thermocouple needs to be used in a application is temperature, environment response time and accuracy.The junction of the thermocuple can be grounded,ungrounded or exposed.The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor.The metal that the sensor is constructed by determines the type of thermocouple manufactured.
1.Diameter and length:Can be customized as customer's requirements(16mm or 20mm)
2.Terminal box:water-proof type,splash-proof type,anti-explosion type,connector type,import type.
| Type | B |
| Temp range | 0-1300 centigrade |
| Accuracy | < ± 0.5% t |
| Insulation resistance | 5MΩ (20°C) |
| Size | 300,400,450,500,550...(mm) |
Features of E Type thermocouple :
Thermocouple type:Assembly thermocouple,Armored thermocouple,bayonet spring fixed thermocouple,high temperature thermocouple,platinum and rhodium thermocouple,anti-corrosion thermocouple,wear-resistence thermocouple,high temperature thermocouple,special thermocouple,hand-held thermocouple,miniature thermocouple,noble metal thermocouple,rapid thermocouple,tungsten rhenium thermocouple, single core armed thermocouple etc
Application of E Type thermocouple :
Plastic injection molding machinery;Food processing equipment;Engine and turbine exhaust gas;Semiconductor processing;Heating treating and metals processing;Medical equipment;Aerospace industries;Packaging equipment;Test standards.
