| Place of Origin: | Wuhan, China |
| Brand Name: | GME |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Usage: | Industrial | Temperature Range: | 0-1600℃ |
|---|---|---|---|
| Wire Material: | Platinum Rhodium | Tube Length: | 300mm-150mm |
| Wire Diameter: | 0.5mm,0.4mm,0.3mm | Accuracy: | ±1.5℃ |
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

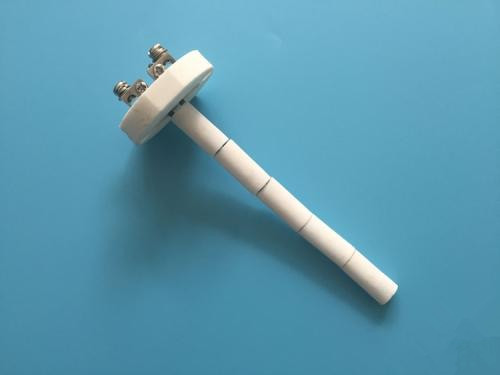

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode, Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy,fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, proclein, ceramics.
It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Advantages: easy assembly
convenient for replacement
high mechanical strenghth
good pressure-resistant
good shock-proof permance;
| Conductir material | Type | Graduation | Spec. of protection tube(mm) | Use temperature°C | |||
| Total Lenght | Length in fluid | external diameter of ceramic tube | Material of protection tube | ||||
| PtRh10-Pt | WRP | S |
300 350 400 450 550 650 900 1150 1250 |
150 200 250 300 400 500 750 1000 1100 |
φ16 φ25 |
High Al content tube | 0-1300 |
| PtRh30-Ptrh6 | WRR | B | Corundum tube | 0-1600 | |||
| PtRh13-pT | WRQ | R |
φ16 φ20 |
High Al content tube | 0-1200 | ||

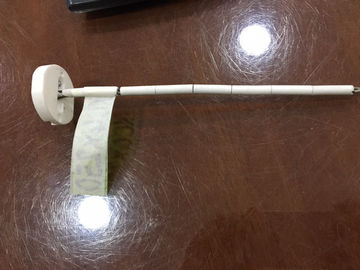

| Mini PtRh10-Pt | WRP-100 | S | 252 | 252 | φ7 | High Al content tube |
0-1200 |
