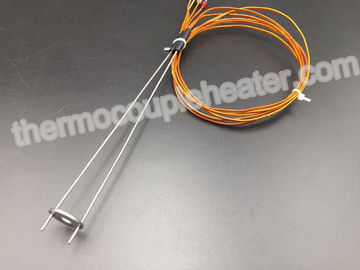

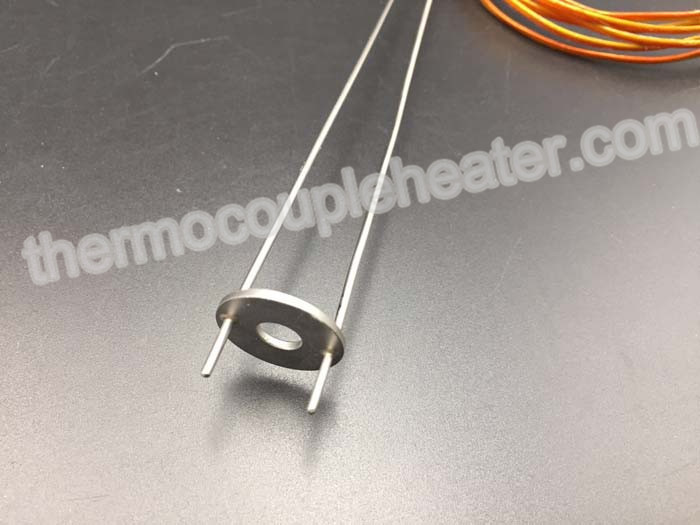

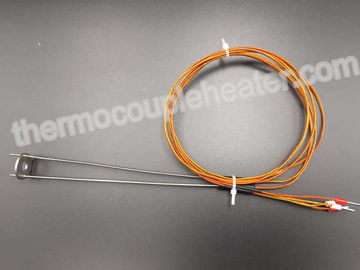

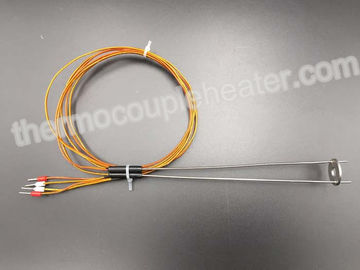

Duplex Type J Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold

Duplex Type J Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold

    • Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold
    • Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold
    • Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold
    • Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold
  • Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Duplex Type J Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold Application: Temperature Sensor For Plastic Industry
    Calibration: Type J Accuracy: Class I
    Max.temperature: 500F Or 260C Sheath Material: 304SS ,316SS,Inconel 600
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

    Duplex Type J Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold



    Product  Description:



    Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.



    A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.


    Information of J type thermocouple

    Type J (iron–constantan) has a more restricted range than type K (−40 to +750 °C), but higher sensitivity of about 55 µV/°C.The Curie point of the iron (770 °C) causes an abrupt change in the characteristic, which determines the upper temperature limit.



    Duplex Type J  Thermocouple Probe With Plastic Transition For Hot Runner Injection Mold





    Feature:



    1. Reed thermal components, good seismic performance;

    2. Simple assembly and easy to change;

    3. Large measuring range (200 °C ~ 1300 °C, 270 °C ~ 2800 °C under special circumstances ).

    4. Fast heat response time;

    5. High precision measurement;

    6. High mechanical strength and good compression performance;

    7. High temperature can reach 2800 degrees;

    8. Long service life.

    Specification:





    Probe Outside Diameter

    0.5mm, 1.0mm, 1.5mm

    Calibration

    Standard limits of error (Type K,J,T,E,N)

    Special limits or error (Type K,J,T,E,N)



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    Inconel 600



    Junction

    Ungrounded , Grounded



    Cable Insulation Description

    24 Gage, Stranded , Kapton

    24 Gage, Solid, Kapton

    24 Gage, Stranded,

    24 Gage,Solid,

    24 Gage,Stranded, Fiberglass

    24 Gage, Solid ,Fiberglass

    Termination type

    50mm split leads and 15mm Bare Ends.

    50mm split leads and spade lugs.

    Standard Male Plug (425F)

    Standard Female Jack(425F)

    Mini Male Plug(425F)

    Mini Female Jack(425F)

    Hi Temp Male Plug(800F)

    Hi Temp Female Jack(800F)






    Application:


    The Hot Runner Thermocouple has been designed to be used in below area,

    1. Plastics and rubber industry
    2. Moulds used in injection molding machines
    3. For direct installation in the process

    4. Hot Runner bushings, drops and nozzles
    5. Hot Runner manifolds
