Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO/CE/UL/CSA |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD 1-100 FOB Shanghai/pc |
| Packaging Details: | Boxes or Wooden Cartons |
| Delivery Time: | 7-15 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000pcs/Month |
| Lead Wire: | Silicon, Glassfiber, | Shealth Material: | SS304 ,SS321 ,SS316, Inconel600 |
|---|---|---|---|
| Color: | Biack And White | Wattage Tolerance: | +5%, -10% |
| Application: | Oil, Water Or Other Liquid Etc | Power Source: | Electric |
| Voltage: | 12-480v | Dimension(L*W*H): | Customizable |
| Type: | Air Heater, Cartidge Heaters | ||
| High Light: | electric cartridge heaters,cartridge heater with thermocouple |
||

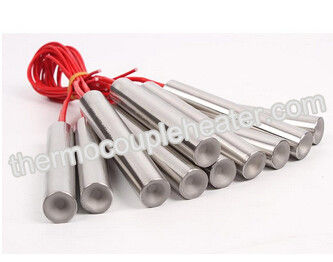

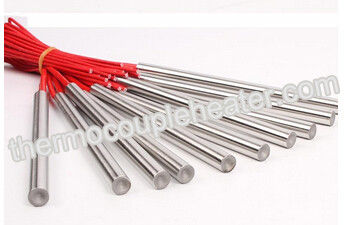

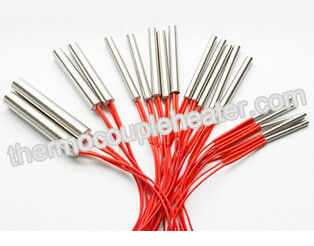

Customized Tubular Electric Industrial Stainless Steel Sheath Screw Cartridge Heater
Description:
1) Mold Heating Element Cartridge Heaters are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,smallmould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.
2) High-wattage cartridges belong to a new generation of electric heating elements; they make it possible to use high watt loads in small spaces, thus ensuring excellent reliability in heavy-duty work conditions. Their special construction technology makes them the most advanced type of heating elements.
3)The entire length of the wire wound around a magnesium oxide core is in a faraway position from the axis of the cartridge, very close to the metal sheath, with a very thin and compressed insulating wall in between; this allows excellent heat exchange that allows a much lower temperature of the resistance wire than in other heaters in which the wire is in a deeper position. Besides the use of advanced technology and precise inspection techniques in their manufacturing, Ultramar cartridge heater owe their total reliability to the use of first-class material from the best sources in the market.
Specification:
Single-Ended tubular heater covering: SUS304/SUS316L/Incoloy 800/Titanium etc.
Insulation: Compacted magnesium Oxide
Heating conductor: NiCr8020
Voltage: 6V to 415v
Power density: Maxi 50W/CM2
Temperature resistance: 800 centi degree
Size tolerance: Less than 0.6mm
Thermocouple: J type, K type etc.
|
Voltage/Frequency:
|
12V-600V/50-60Hz
|
||
|
Rated power:
|
10-5000W+5%-10%
|
||
|
Surface temperature:
|
TS70℃-290℃
|
||
|
Isotaltion Voltage:
|
3000V/2S/5mA
|
||
|
Diameter:
|
Ф12,Ф16,Ф20,Ф25,Ф30
|
||
|
Length:
|
50~1000mm
|
||
Application:
1,plastic packaging
2,small mould heating
3,analysis instruments
4,semiconductor electric welding
5,die casting
6,water heating and injection
7,refrigeration etc
